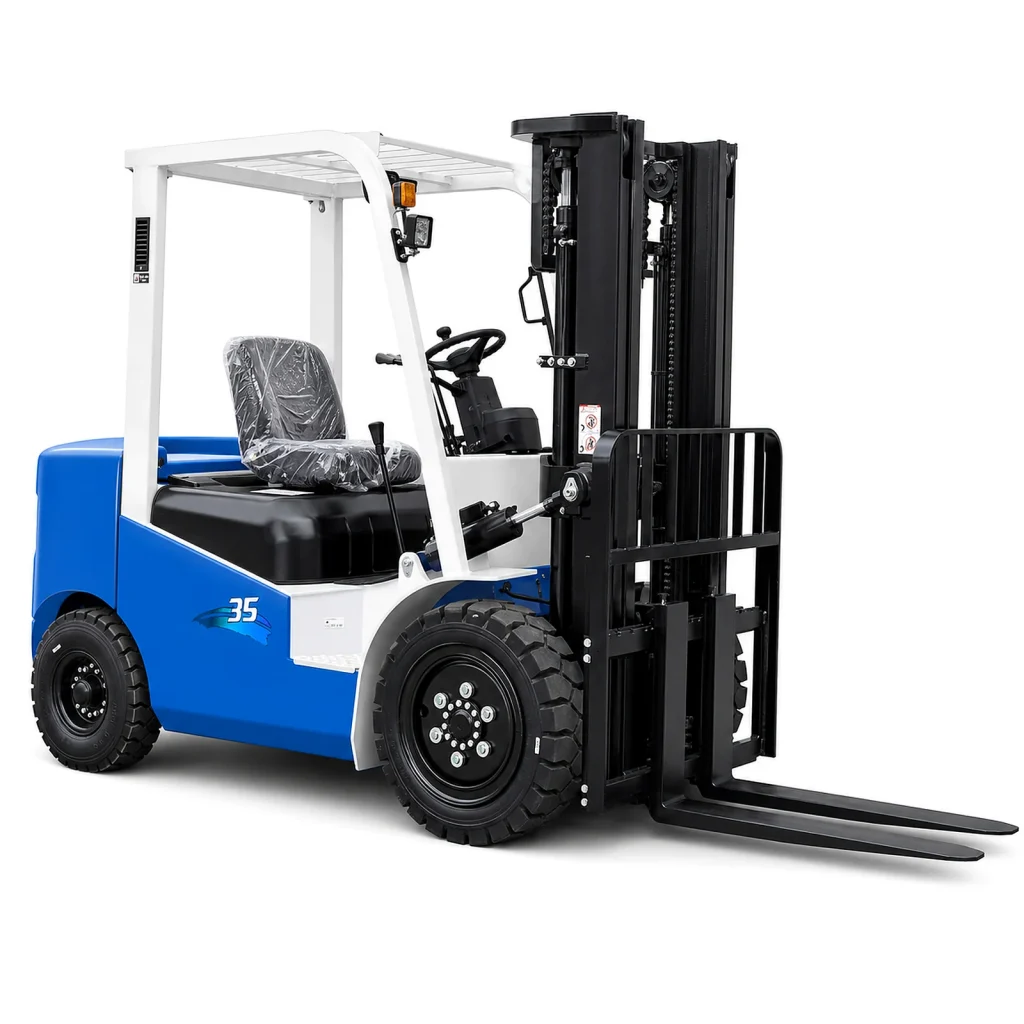

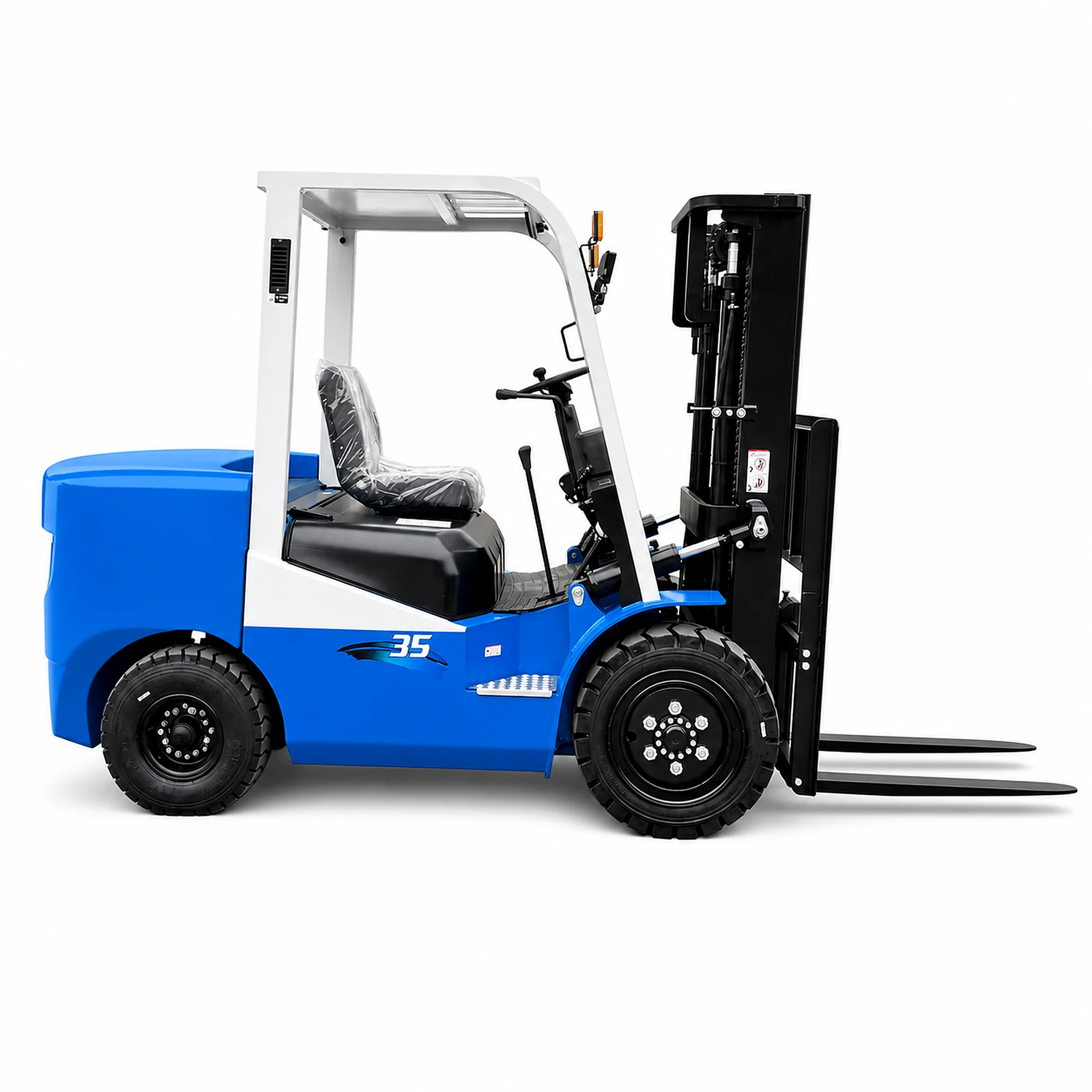

HLCPC35 Diesel Forklift
HLCPC35 is a Hongli diesel forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
- Operating Weight
- 3500 kg
- Bucket Capacity
- 3000 mm
Evidence before quotation
Confirm the machine before you order
Use the current model photos and verified specifications on this page, then ask our export team for the configuration and shipment records required for your order.
- 3 model photosMatched to this product record
- Specification checkConfiguration confirmed before quotation
- Pre-shipment evidencePacking and loading photos available on request
Product Overview
Built for work. Ready for export.
HLCPC35 is a Hongli diesel forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HLCPC35
- Rated Capacity
- 3500 kg
- Load Center
- 500 mm
- Power Type
- Diesel
- Maximum Lifting Speed, Unladen / Laden
- 450/420 mm/s
- Maximum Travel Speed, Laden / Unladen
- 18/20 km/h
- Maximum Traction Force, Laden / Unladen
- 16/11 kN
- Gradeability, Laden / Unladen
- 15/20 %
- Lift Height
- 3000 mm
- Free Lift
- 80 mm
Verified model data
Technical Specifications
Standard Configuration
- Model
- HLCPC35
- Rated Capacity
- 3500 kg
- Load Center
- 500 mm
- Power Type
- Diesel
- Maximum Lifting Speed, Unladen / Laden
- 450/420 mm/s
- Maximum Travel Speed, Laden / Unladen
- 18/20 km/h
- Maximum Traction Force, Laden / Unladen
- 16/11 kN
- Gradeability, Laden / Unladen
- 15/20 %
- Lift Height
- 3000 mm
- Free Lift
- 80 mm
- Mast Tilt, Forward / Backward
- 6/12 °
- Minimum Turning Radius
- 2540 mm
- Minimum Right-Angle Stacking Aisle Width
- 2050 mm
- Minimum Ground Clearance
- 135 mm
- Fork Width
- 122 mm
- Fork Thickness
- 45 mm
- Carriage Height
- 1225 mm
- Fork Length
- 1220 mm
- Overall Length with Forks
- 4170 mm
- Overall Length without Forks
- 2950 mm
- Operating Weight
- 3500 kg
- Bucket Capacity
- 3000 mm
Attachments & Options
Fork lengths, mast heights, side shifter, cab and tyre options are confirmed for each order.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Outdoor yards / Loading docks / Container handling / Construction material transport
