Forklifts / Export model

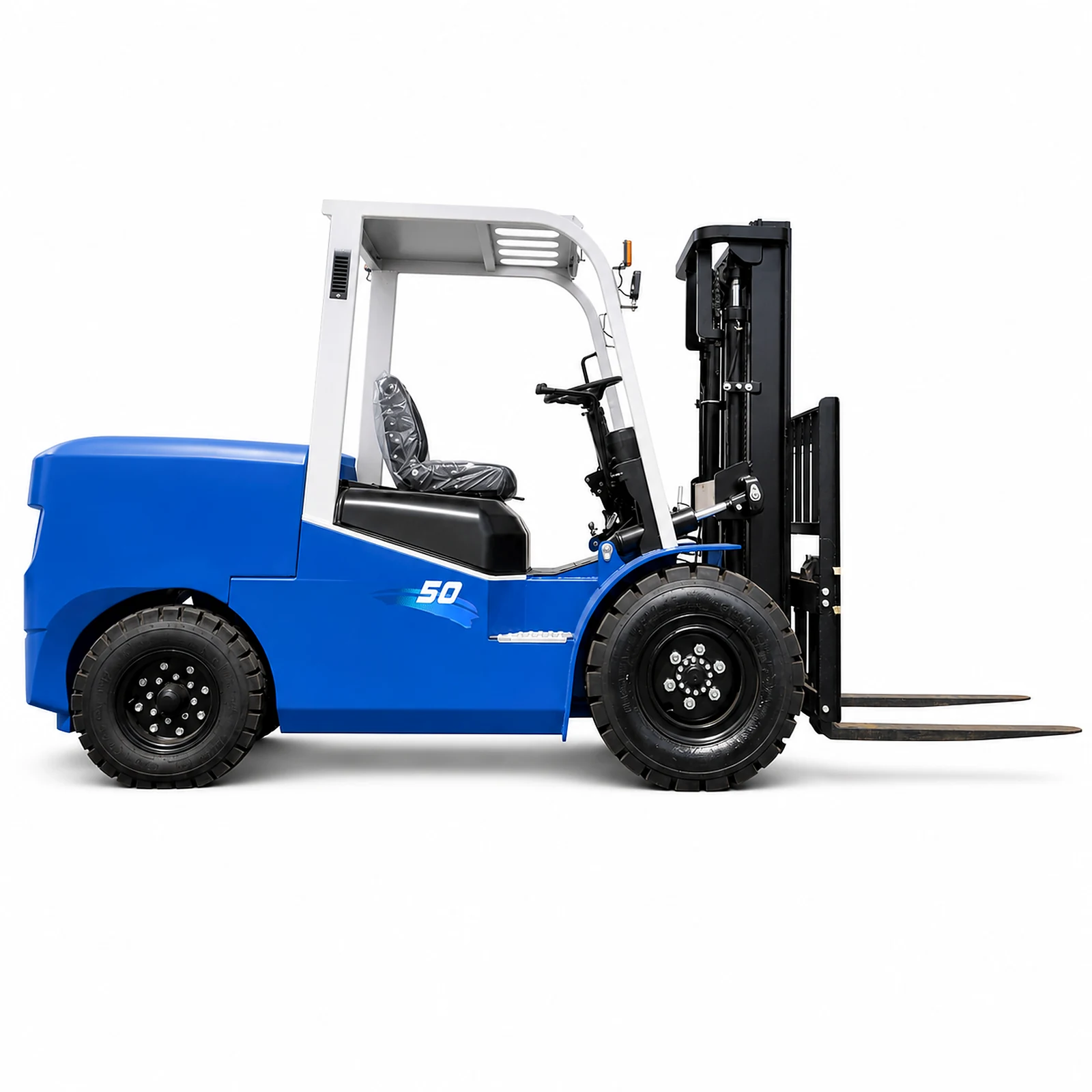

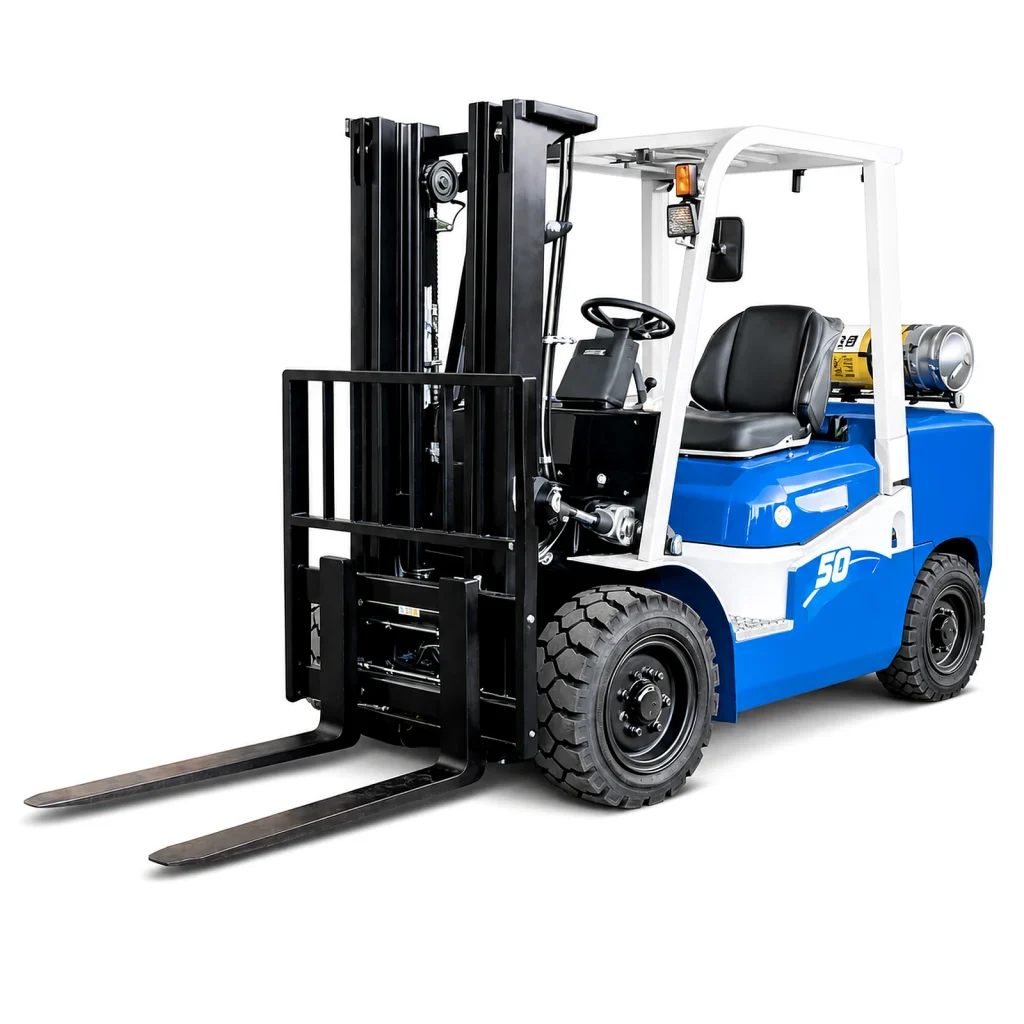

HLCPC50 Diesel Forklift
HLCPC50 is a Hongli diesel forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
- Operating Weight
- 5000 kg
- Bucket Capacity
- 3000 mm
Evidence before quotation
Confirm the machine before you order
Use the current model photos and verified specifications on this page, then ask our export team for the configuration and shipment records required for your order.
- 3 model photosMatched to this product record
- Specification checkConfiguration confirmed before quotation
- Pre-shipment evidencePacking and loading photos available on request
Product Overview
Built for work. Ready for export.
HLCPC50 is a Hongli diesel forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HLCPC50
- Rated Capacity
- 5000 kg
- Load Center
- 500 mm
- Power Type
- Diesel
- Maximum Lifting Speed, Unladen / Laden
- 330 mm/s
- Maximum Travel Speed, Laden / Unladen
- 22 km/h
- Maximum Traction Force, Laden / Unladen
- 15.5 kN
- Gradeability, Laden / Unladen
- 15/20 %
- Lift Height
- 3000 mm
- Free Lift
- 150 mm
Verified model data
Technical Specifications
Standard Configuration
- Model
- HLCPC50
- Rated Capacity
- 5000 kg
- Load Center
- 500 mm
- Power Type
- Diesel
- Maximum Lifting Speed, Unladen / Laden
- 330 mm/s
- Maximum Travel Speed, Laden / Unladen
- 22 km/h
- Maximum Traction Force, Laden / Unladen
- 15.5 kN
- Gradeability, Laden / Unladen
- 15/20 %
- Lift Height
- 3000 mm
- Free Lift
- 150 mm
- Mast Tilt, Forward / Backward
- 6/12 °
- Minimum Turning Radius
- 2850 mm
- Minimum Right-Angle Stacking Aisle Width
- 2350 mm
- Minimum Ground Clearance
- 180 mm
- Fork Width
- 150 mm
- Fork Thickness
- 50 mm
- Carriage Height
- 1275 mm
- Fork Length
- 1220 mm
- Overall Length with Forks
- 4410 mm
- Overall Length without Forks
- 3190 mm
- Operating Weight
- 5000 kg
- Bucket Capacity
- 3000 mm
Attachments & Options
Fork lengths, mast heights, side shifter, cab and tyre options are confirmed for each order.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Outdoor yards / Loading docks / Container handling / Construction material transport
Direct factory response
Tell us what you need
Send the destination country, quantity and required attachments. Our export team will reply with configuration, price and lead time.
