Skid Steer Loaders / Export model
HLY60 Wheeled Skid Steer Loader
HLY60 is a Hongli wheeled skid steer loader with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
- Operating Weight
- 3240 kg
- Bucket Capacity
- 0.5 m³
Evidence before quotation
Confirm the machine before you order
Use the current model photos and verified specifications on this page, then ask our export team for the configuration and shipment records required for your order.

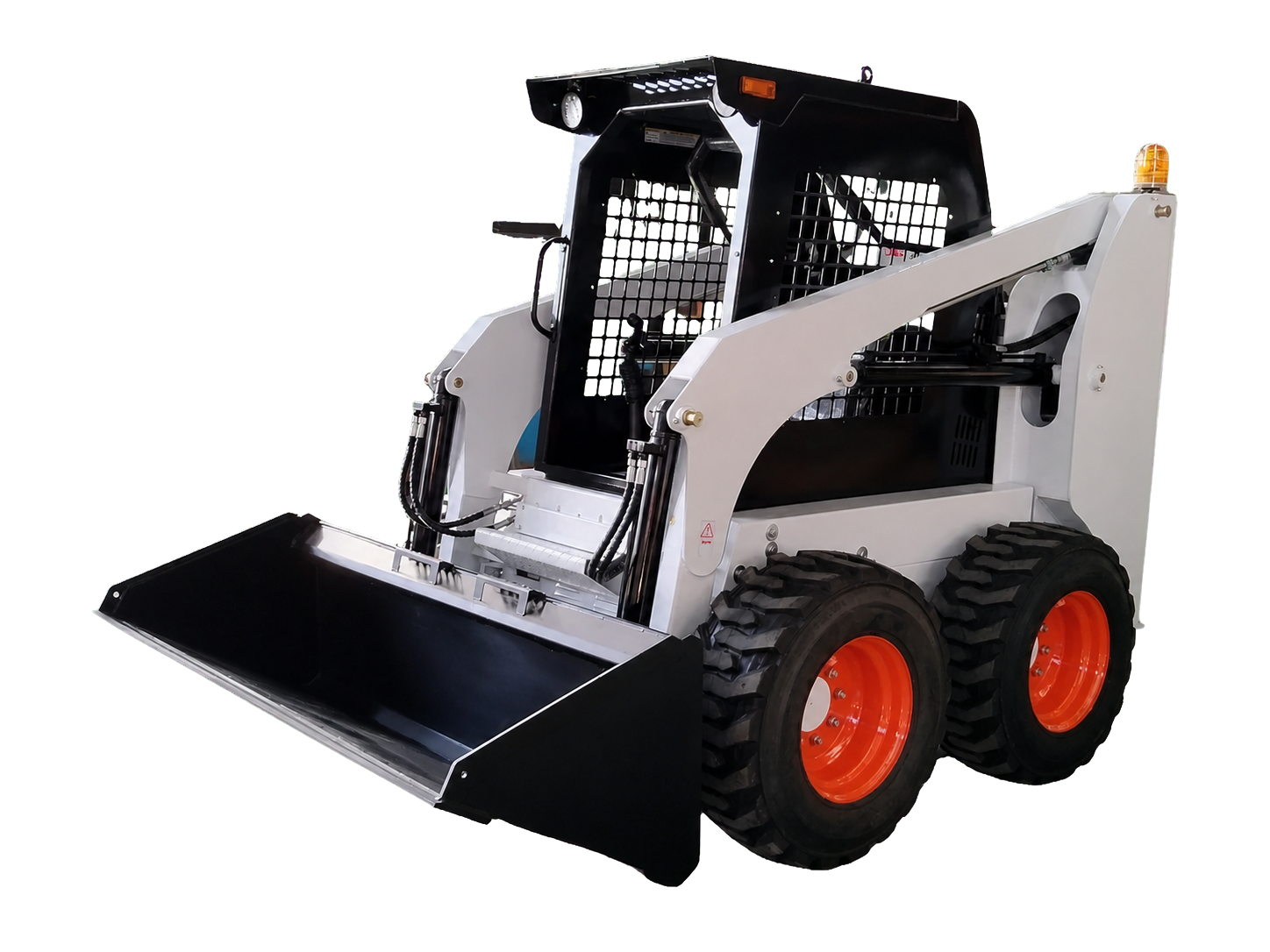

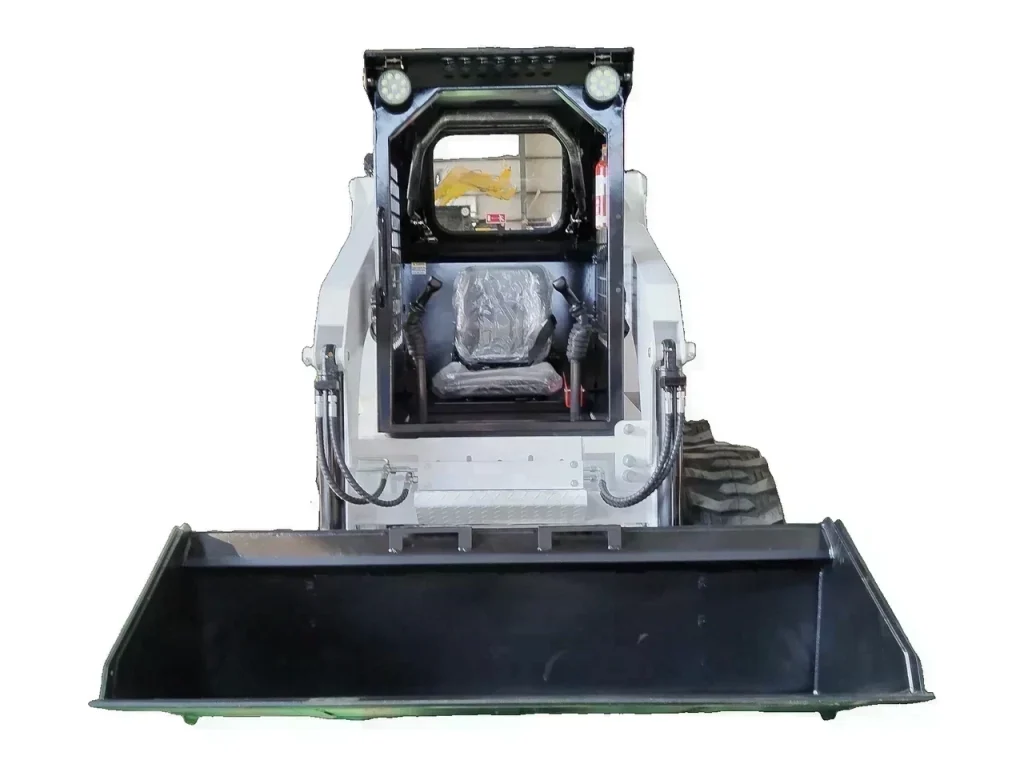

- 3 model photosMatched to this product record
- Specification checkConfiguration confirmed before quotation
- Pre-shipment evidencePacking and loading photos available on request
Product Overview
Built for work. Ready for export.
HLY60 is a Hongli wheeled skid steer loader with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HLY60
- Displacement
- 3 168 L
- Emission Standard
- Euro 2 / Euro 3
- Maximum Travel Speed
- 12 km/h
- Tire Model
- 10 – 16.5
- Rated Operating Capacity
- 850 kg
- Maximum Loading Capacity
- 300
- Bucket Capacity
- 0.5 m³
- Rated Hydraulic Flow
- 75 L/min
- High-Flow System
- -
Verified model data
Technical Specifications
Standard Configuration
- Model
- HLY60
- Displacement
- 3 168 L
- Emission Standard
- Euro 2 / Euro 3
- Maximum Travel Speed
- 12 km/h
- Tire Model
- 10 – 16.5
- Rated Operating Capacity
- 850 kg
- Maximum Loading Capacity
- 300
- Bucket Capacity
- 0.5 m³
- Rated Hydraulic Flow
- 75 L/min
- High-Flow System
- -
- Working System Pressure
- 17 – 21 bar
- Fuel Tank Capacity
- 5 L
- Hydraulic Oil Tank Capacity
- 80 L
- Operating Weight
- 3240 kg
- Maximum Breakout Force
- 3.5 kN
- Bucket Width
- 1000 mm
- Maximum Loading Height
- 1720 mm
- Maximum Dump Height
- 1510 mm
- Dump Reach
- 250 mm
- Ground Clearance
- 150 mm
Attachments & Options
Bucket, forks, auger, breaker, sweeper and other quick-attach tools are available by application.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Farms and yards / Road maintenance / Landscaping / Loading and material handling
Direct factory response
Tell us what you need
Send the destination country, quantity and required attachments. Our export team will reply with configuration, price and lead time.
