Forklifts / Export model

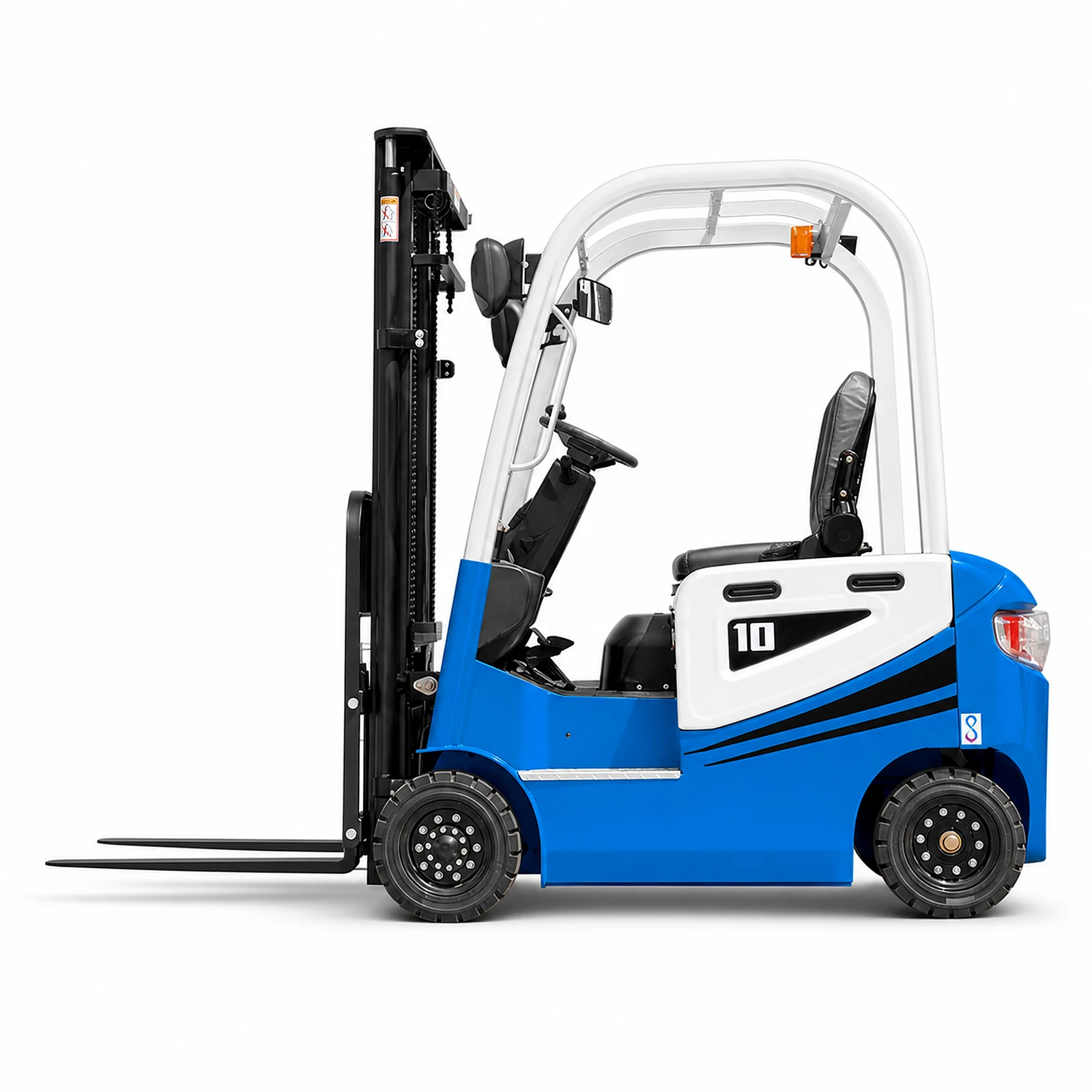

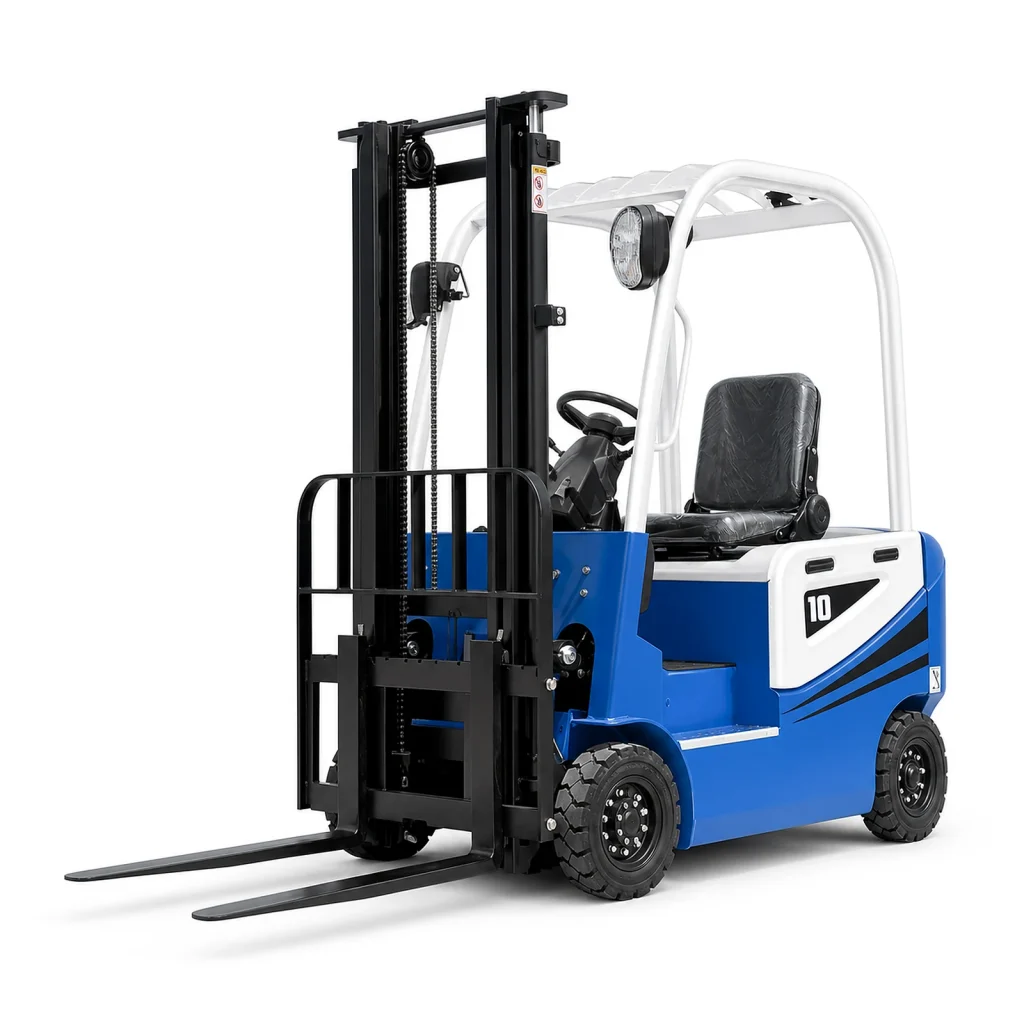

HLC10 Electric Forklift
HLC10 is a Hongli electric forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
- Operating Weight
- 1000 kg
- Overall Width
- 1020 mm
Product Overview
Built for work. Ready for export.
HLC10 is a Hongli electric forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HLC10
- Operator Type
- Seated
- Rated Capacity
- 1000 kg
- Load Center Distance
- 500 mm
- Power Source
- Lead-acid Battery
- Wheelbase
- 1335 mm
- Service Weight (with Battery)
- 1570 kg
- Length to Fork Face
- 1980 mm
- Overall Width
- 1020 mm
- Battery Voltage / Rated Capacity
- 60V / 120Ah V/Ah
Verified model data
Technical Specifications
Standard Configuration
- Model
- HLC10
- Operator Type
- Seated
- Rated Capacity
- 1000 kg
- Load Center Distance
- 500 mm
- Power Source
- Lead-acid Battery
- Wheelbase
- 1335 mm
- Service Weight (with Battery)
- 1570 kg
- Length to Fork Face
- 1980 mm
- Overall Width
- 1020 mm
- Battery Voltage / Rated Capacity
- 60V / 120Ah V/Ah
- Battery Weight
- 180 kg
- Front Overhang
- 308 mm
- Mast Tilt, Forward / Backward
- 5/10 °
- Height, Mast Lowered
- 2017 mm
- Ground Clearance, Below Mast
- 77 mm
- Maximum Lift Height
- 3000 mm
- Height, Mast Extended
- 3957 mm
- Height Of Overhead Guard
- 1860 mm
- Fork Carriage Width, Max. / Min.
- 970/200 mm
- Fork Dimensions (L × W × T)
- 1070×100×30 mm
- Operating Weight
- 1000 kg
Attachments & Options
Fork options, side shifter, mast choices, battery and charger options are confirmed for each order.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Indoor warehouse handling / Factory logistics / Pallet transport / Low-noise material handling
