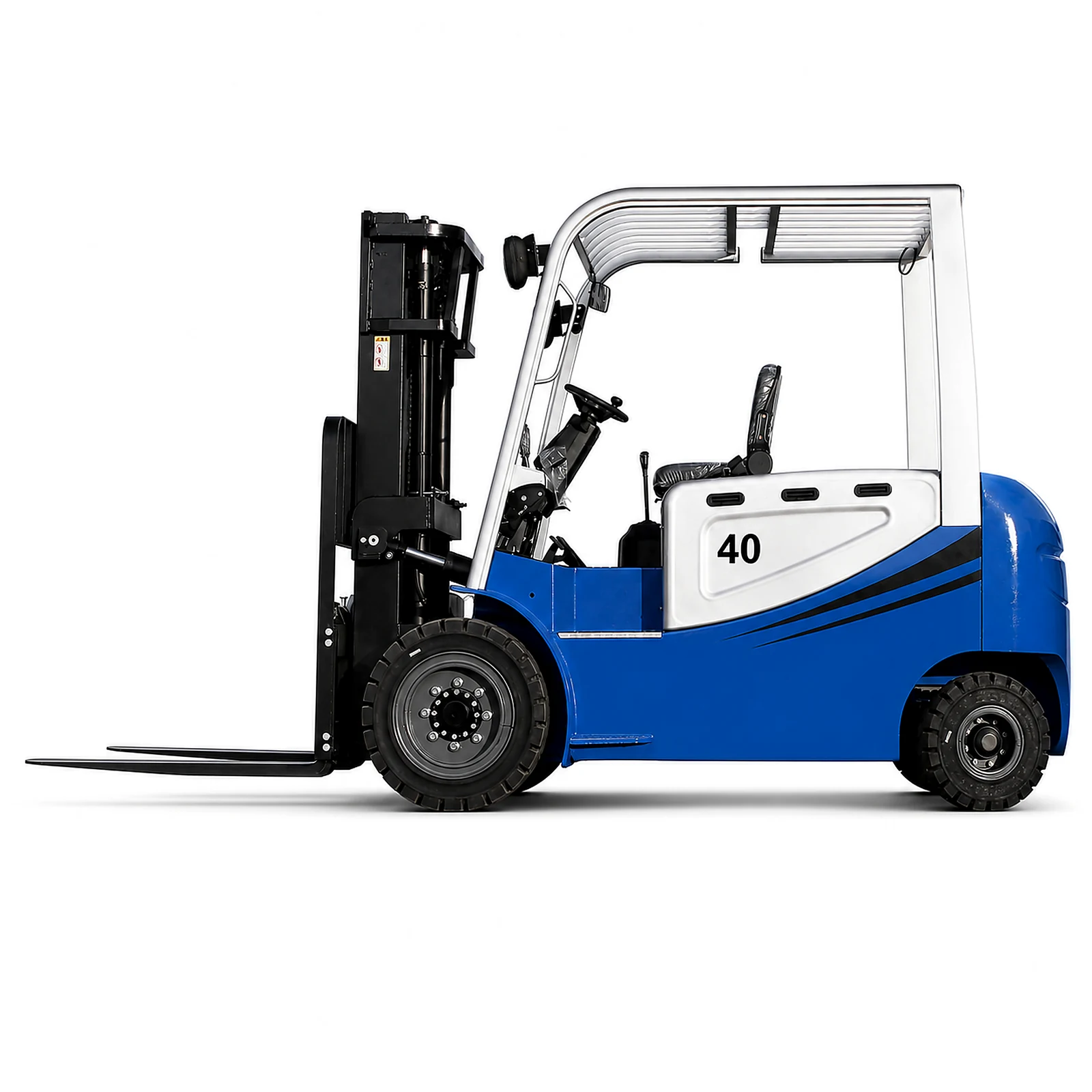

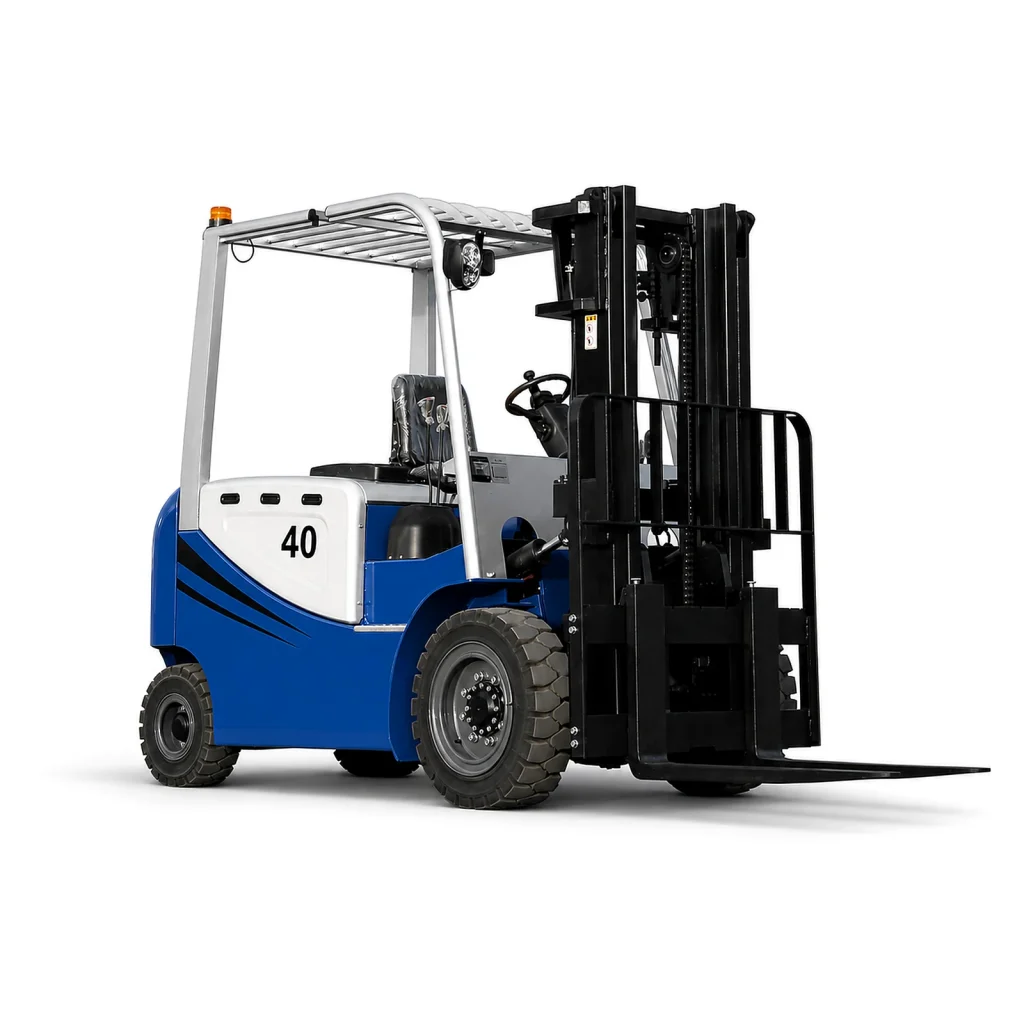

HLC40 Electric Forklift
HLC40 is a Hongli electric forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
- Operating Weight
- 4000 kg
- Overall Width
- 1585 mm
Product Overview
Built for work. Ready for export.
HLC40 is a Hongli electric forklift with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HLC40
- Operator Type
- Seated
- Rated Capacity
- 4000 kg
- Load Center Distance
- 500 mm
- Power Source
- Lead-acid Battery
- Wheelbase
- 2040 mm
- Service Weight (with Battery)
- 6660 kg
- Length to Fork Face
- 2990 mm
- Overall Width
- 1585 mm
- Battery Voltage / Rated Capacity
- 80V / 300Ah V/Ah
Verified model data
Technical Specifications
Standard Configuration
- Model
- HLC40
- Operator Type
- Seated
- Rated Capacity
- 4000 kg
- Load Center Distance
- 500 mm
- Power Source
- Lead-acid Battery
- Wheelbase
- 2040 mm
- Service Weight (with Battery)
- 6660 kg
- Length to Fork Face
- 2990 mm
- Overall Width
- 1585 mm
- Battery Voltage / Rated Capacity
- 80V / 300Ah V/Ah
- Battery Weight
- 860 kg
- Front Overhang
- 573 mm
- Mast Tilt, Forward / Backward
- 6/12 °
- Height, Mast Lowered
- 2340 mm
- Ground Clearance, Below Mast
- 160 mm
- Maximum Lift Height
- 3000 mm
- Height, Mast Extended
- 4220 with Forks / 3790 without Forks mm
- Height Of Overhead Guard
- 2350 mm
- Fork Carriage Width, Max. / Min.
- 1240/300 mm
- Fork Dimensions (L × W × T)
- 1070×145×50 mm
- Operating Weight
- 4000 kg
Attachments & Options
Fork options, side shifter, mast choices, battery and charger options are confirmed for each order.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Warehouse handling / Factory logistics / Loading docks / Pallet transport
