Reference configuration: 1,200 kg rated operating capacity · 0.55 m³ bucket · 3,550 kg operating weight · 1,880 mm width with bucket.

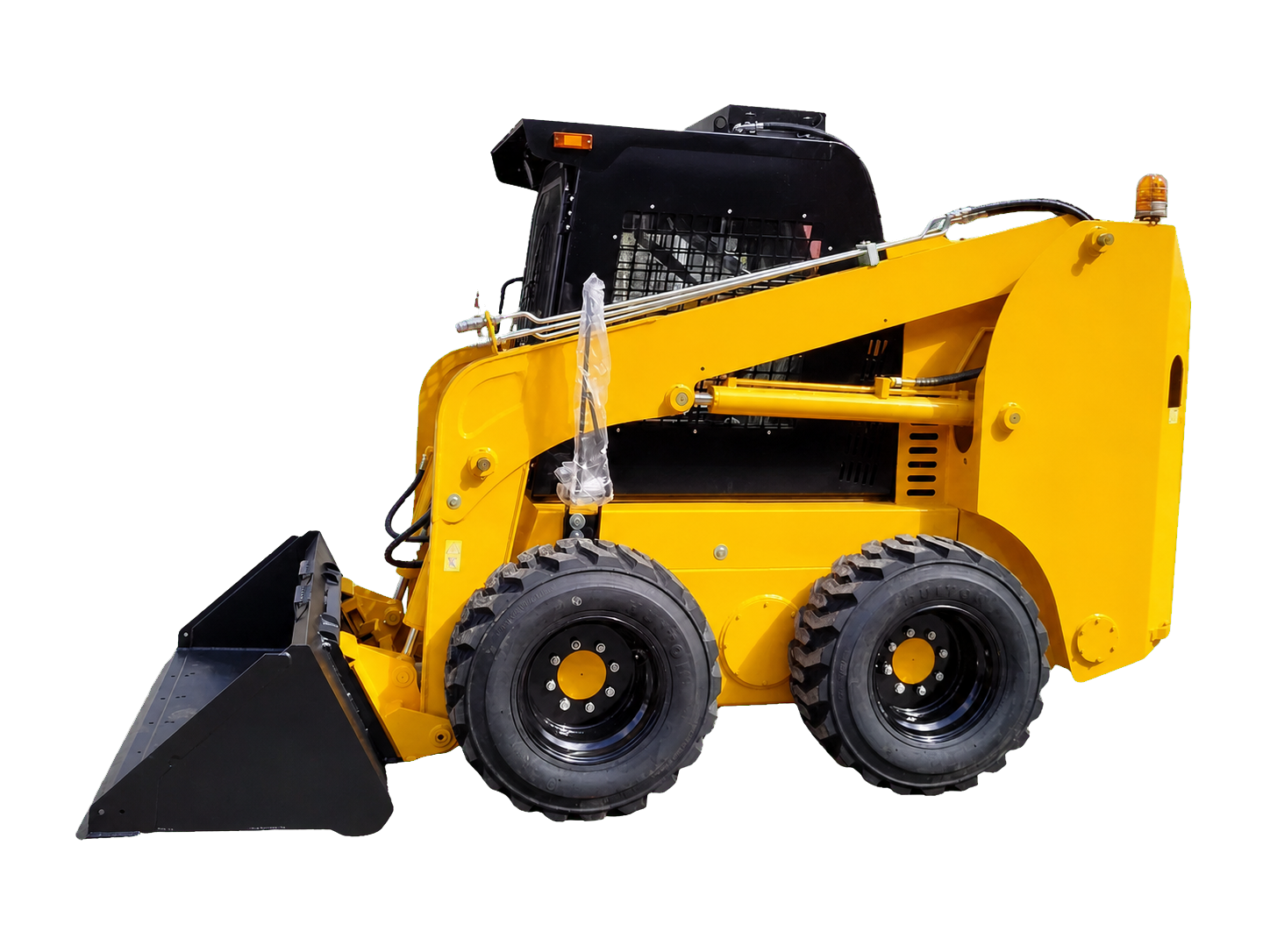

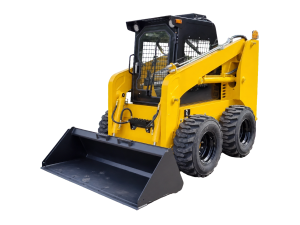

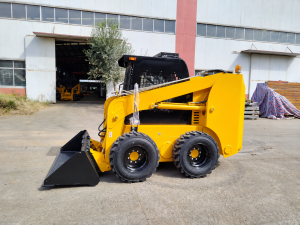

The Hongli HLY100 is a wheeled skid steer loader with a catalog-rated operating capacity of 1,200 kg, a 0.55 m³ bucket and a listed operating weight of 3,550 kg. Its reference loading dimensions include 2,500 mm dump height, 700 mm maximum reach and a 3,150 mm pin-height entry. The technical data lists 80 L/min rated hydraulic flow and a separate 140 L/min high-flow system entry. Confirm the actual bucket, hydraulic package and loading envelope in the quotation.
Comparing the HLY100 with a smaller loader for an existing loading point? Send Hongli Machinery the load or material, receiving-edge height, required reach, route dimensions, attachments, destination country and expected quantity. Request an HLY100 configuration check against those constraints before choosing from the capacity number alone.
More Rated Capacity Does Not Mean a Better Fit at Every Loading Point
The HLY100 has a higher listed rated operating capacity than the HLY75: 1,200 kg versus 1,050 kg. It also has a larger reference bucket, 0.55 m³ rather than 0.5 m³. Those differences are relevant when assessing a material-handling job, but they do not establish the complete loading position.
The height figures show why. HLY100 lists 3,150 mm at the pin, compared with the HLY75’s 3,500 mm entry. Yet the HLY100’s listed dump height is slightly higher: 2,500 mm versus 2,450 mm. Its listed maximum reach is shorter: 700 mm versus 750 mm.
These are not contradictory instructions to select one model. They describe different points and positions. They show why a larger model number, higher rated capacity or higher pin figure cannot replace a check of the bucket’s discharge position.
Check the Receiving Edge and Its Setback Together
Record both the height of the receiving edge and how far the bucket must reach to place material inside the opening. Include any physical obstruction that prevents the machine approaching closely. A low receiving edge can still be difficult to load if the opening sits too far back from the machine’s available approach.
The HLY100’s 2,500 mm dump-height entry and 700 mm maximum-reach entry are reference limits. The catalog does not establish that both maxima occur at the same position. Do not treat them as the top and side of a rectangular space the bucket can reach throughout.
Ask for a matched drawing or demonstration with the proposed bucket and receiving geometry. The check should show the discharge edge, the receiving opening and the necessary approach position. This is more useful than comparing a single lift-height number.
A 50 mm Catalog Difference Is Not Guaranteed Site Clearance
The HLY100’s listed dump height is only 50 mm above the HLY75 figure. That difference is not a clearance allowance for a particular receiving vehicle. The chosen bucket, machine position and site geometry still need to be established.
If the HLY75 misses a receiving point, do not assume the HLY100 solves the problem because its dump-height entry is slightly larger. Check whether the constraint is height, reach, approach space or the bucket’s actual dump position. A different bucket or machine configuration may be the more relevant comparison.

Who Should Consider the HLY100?
The HLY100 is worth assessing when its approved load capacity and 0.55 m³ reference bucket fit the material, and the complete loading geometry works at the receiving point. It offers a specific comparison with the HLY75 for buyers seeking additional reference capacity within the same listed bucket-width and headline transport-dimension class.
The two models list 1,880 mm width with bucket, 2,160 mm overall height and 3,580 mm length with bucket. That makes them useful candidates to compare for an established route, but it does not prove identical turning envelopes, attachment projections or clearance at every point.
Yard loading, loose-material transfer and site cleanup are applications to evaluate against the actual configuration. A powered-attachment job also requires the hydraulic package to be matched separately. Neither the capacity number nor the high-flow entry establishes suitability for a whole category of tools.
When You Should Choose Something Else
Do not choose the HLY100 if the required load exceeds the approved rating for the selected attachment, if the receiving opening cannot be reached in a confirmed loading position, or if the travel route cannot accommodate the full machine and attachment.
If the HLY75 already satisfies the job, the HLY100’s additional reference capacity is not by itself a reason to upgrade. Compare the complete configurations and the actual task. Likewise, a tool requiring an unconfirmed hydraulic pressure, drain arrangement or continuous-duty capability should not be purchased on the strength of the 140 L/min entry.
HLY100 Reference Specifications
The following values describe the supplied reference configuration. Ask for the offered build and attachment-specific limits in the order specification.
| Item | Reference specification |
|---|---|
| Model | HLY100 wheeled skid steer loader |
| Rated operating capacity | 1,200 kg |
| Tipping load | 2,400 kg |
| Bucket capacity | 0.55 m³; capacity measurement basis not stated |
| Operating weight | 3,550 kg |
| Maximum travel-speed entry | 12 / 18 km/h; confirm the offered drive configuration |
| Tire model | 12-16.5 |
| Rated hydraulic flow | 80 L/min |
| High-flow system entry | 140 L/min; confirm the package included in the quotation |
| Auxiliary pressure and continuous-duty conditions | Not specified in the supplied reference data |
| Fuel tank capacity | 90 L |
| Hydraulic oil tank capacity | 90 L |
| Pin height, catalog table label “Height to Boom Pivot Pin” | 3,150 mm; confirm the measurement point |
| Overall height | 2,160 mm |
| Length with bucket | 3,580 mm |
| Length without bucket | 2,880 mm |
| Width with bucket | 1,880 mm |
| Gauge, catalog label “Track Width” | 1,500 mm; confirm measurement points |
| Wheelbase | 1,115 mm |
| Ground clearance | 205 mm |
| Dump height | 2,500 mm |
| Maximum reach | 700 mm |
| Reference engine designation | WP4.1; confirm manufacturer and exact offered model |
| Reference rated engine power and speed | 74 kW at 2,200 rpm; gross/net basis not stated |
| Reference engine displacement | 4.1 L |
The engine entries identify the reference parameter-sheet configuration. They do not prove a particular emissions certification or identify every engine offered for this model. Confirm the exact engine and applicable destination documentation before ordering.
The drawing labels the 3,150 mm entry as bucket hinge-pin height, while the table uses “Height to Boom Pivot Pin.” Confirm the measurement point for the offered machine. It is separate from the 2,500 mm dump-height entry.

What the 1,200 kg Rating Does and Does Not Tell You
The 1,200 kg reference rating and the 2,400 kg tipping-load entry are different specifications. The larger number is not a working-load allowance. The supplied data does not establish the complete rating conditions or a capacity chart for every attachment.
The 0.55 m³ bucket figure describes volume, not the mass of every full bucket. Establish the material mass in its handled condition and confirm the approved load with the actual bucket. Bucket construction, attachment mass and load position must be included in that assessment rather than assumed from nominal volume.
For forks, provide load mass, pallet dimensions and intended load position. Ask for the approved capacity of that fork configuration. Do not apply the bucket’s reference rating to pallet handling or suspended lifting without the appropriate confirmation.
The HLY100 and HLY75 have only a 50 kg difference in listed operating weight, despite different capacity and hydraulic entries. That arithmetic does not prove equivalent transport configurations or structural loading. Obtain the actual configured and shipment masses rather than inferring them from the comparison.
Select the Hydraulic and Travel Package for the Actual Work
The HLY100 lists 80 L/min rated hydraulic flow and 140 L/min under high flow. These are separate entries, not an approved combined supply. The catalog does not establish that every quotation includes the 140 L/min package or that the rated-flow figure is guaranteed continuous flow at the attachment connection.
For a powered tool, obtain the required flow range, pressure, allowable return backpressure, case-drain requirement, controls and mounting details. Then ask Hongli Machinery to identify the matching auxiliary configuration and suitability for the intended duty. A tool’s attachment name or matching coupler alone cannot confirm compatibility.
The travel-speed entry is printed as 12 / 18 km/h. Have the quotation identify the applicable drive arrangement rather than assuming every machine includes a selectable two-speed system. A maximum-speed figure also does not predict loaded travel speed or daily production on the actual route.
For transport, use the complete machine and attachment envelope, actual shipment mass and packing details. The listed operating weight of 3,550 kg is not shipping gross weight. The 1,880 mm width explicitly includes the bucket; it does not independently establish the bare-machine width with another tool fitted.
HLY100 Compared with HLY75 and HLT100
The HLY75 wheeled skid steer loader lists 1,050 kg rated operating capacity, a 0.5 m³ bucket, 3,500 kg operating weight and a 120 L/min high-flow entry. Its headline width, height and lengths match the HLY100 reference entries, but its pin height, dump height and maximum reach differ. Compare them against the same receiving point and load rather than treating HLY100 as an upgrade in every dimension.
The HLT100 tracked skid steer loader lists the same 1,200 kg rated operating capacity and 0.55 m³ bucket volume, but a 4,500 kg operating weight, 2,030 mm width with bucket and 3,700 mm length with bucket. Its undercarriage and transport envelope therefore require a separate assessment.
Those matching load figures do not prove identical rating standards or equivalent performance on a particular surface. Describe the ground conditions, travel pattern and transport constraints before deciding between wheels and tracks. No ground-pressure or surface-damage guarantee can be derived from these headline dimensions alone.
HLY100 Buyer Questions
Does HLY100 lift higher than HLY75?
Not by every height measure. HLY100 lists a lower pin-height figure, 3,150 mm versus 3,500 mm, but a slightly higher dump height, 2,500 mm versus 2,450 mm. Check the selected buckets and complete loading positions.
Will its extra 50 mm of listed dump height clear my vehicle?
That cannot be confirmed from the catalog difference alone. Send the receiving-edge height, opening position and necessary reach, including any obstruction to the approach. Request a matched geometry check.
Is every HLY100 a two-speed machine?
The source gives a 12 / 18 km/h entry without explaining the offered drive packages. Have the quotation specify the actual arrangement and its operating instructions; do not assume selectable two-speed operation is included.
Does every HLY100 supply 140 L/min to an attachment?
The high-flow entry does not establish every quoted machine’s equipment or the conditions at the auxiliary connection. Confirm flow, pressure, return, drain, controls and duty for the exact tool and machine package.
Can the 0.55 m³ bucket always carry 1,200 kg?
No. Volume does not establish material mass or attachment-specific capacity. Confirm the actual material, bucket configuration and approved load. The 2,400 kg tipping-load value is not a working allowance.
Is HLY100 a smaller version of HLT100 with the same capability?
No such equivalence is established. They share some catalog figures but have different undercarriages, machine masses and transport dimensions. Evaluate the surface, actual rating conditions and configuration separately.
Request an HLY100 Configuration for Your Loading Point
Send Hongli Machinery:
- Destination country, delivery port and expected quantity.
- Material or load type, actual load mass and required bucket or other attachment.
- Receiving-edge height, opening position, required reach and approach restrictions.
- Travel-route width, entrance height, turning space and ground conditions.
- Powered-tool specifications, including flow, pressure, return, drain and controls.
- Transport requirements, required engine documentation and intended travel-duty needs.
Request an HLY100 configuration and quotation. Ask for the confirmed loading envelope, attachment-specific capacity, hydraulic and drive packages, actual engine and shipment details. Pricing and availability depend on the complete agreed configuration.
