Reference catalog configuration — rated capacity: 2,500 kg at a 500 mm load center | Overall width: 1,160 mm | Battery: 72V / 210Ah lead-acid | Service weight with battery: 3,300 kg

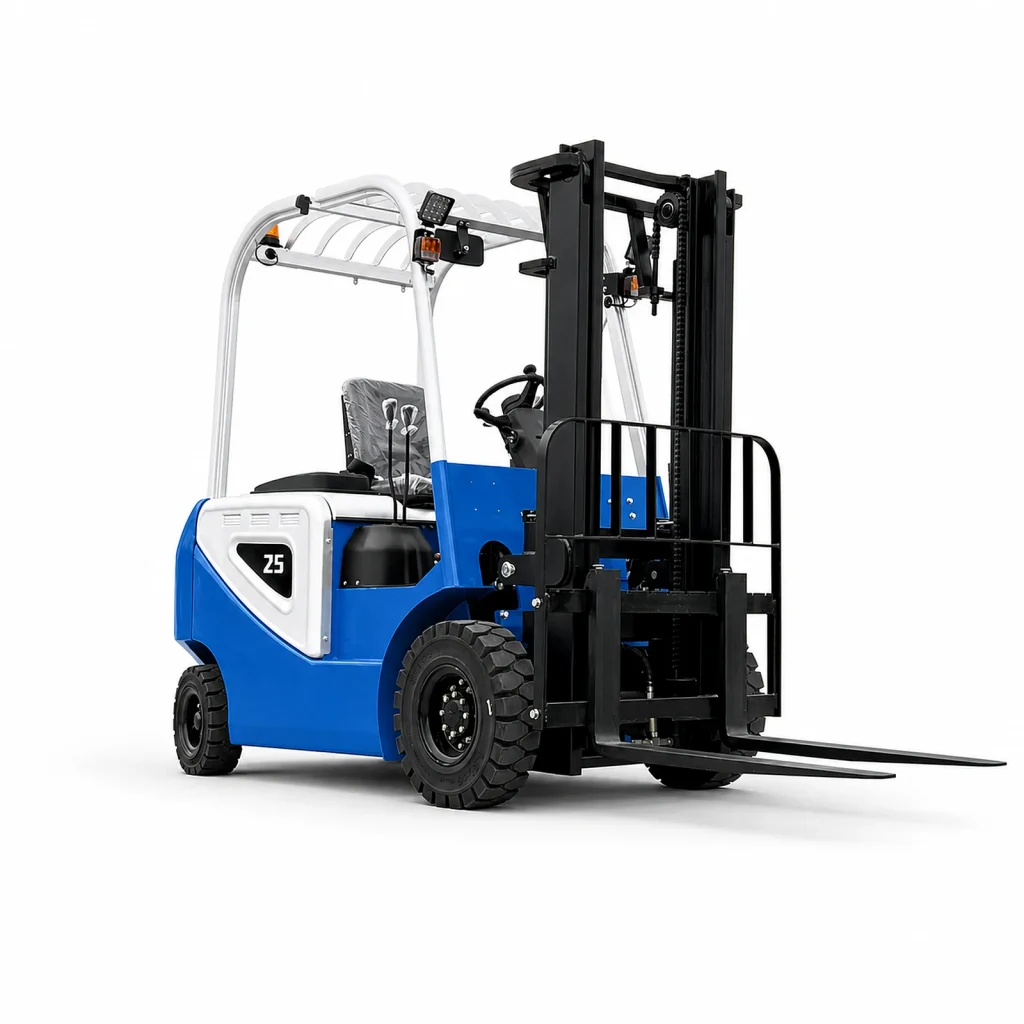

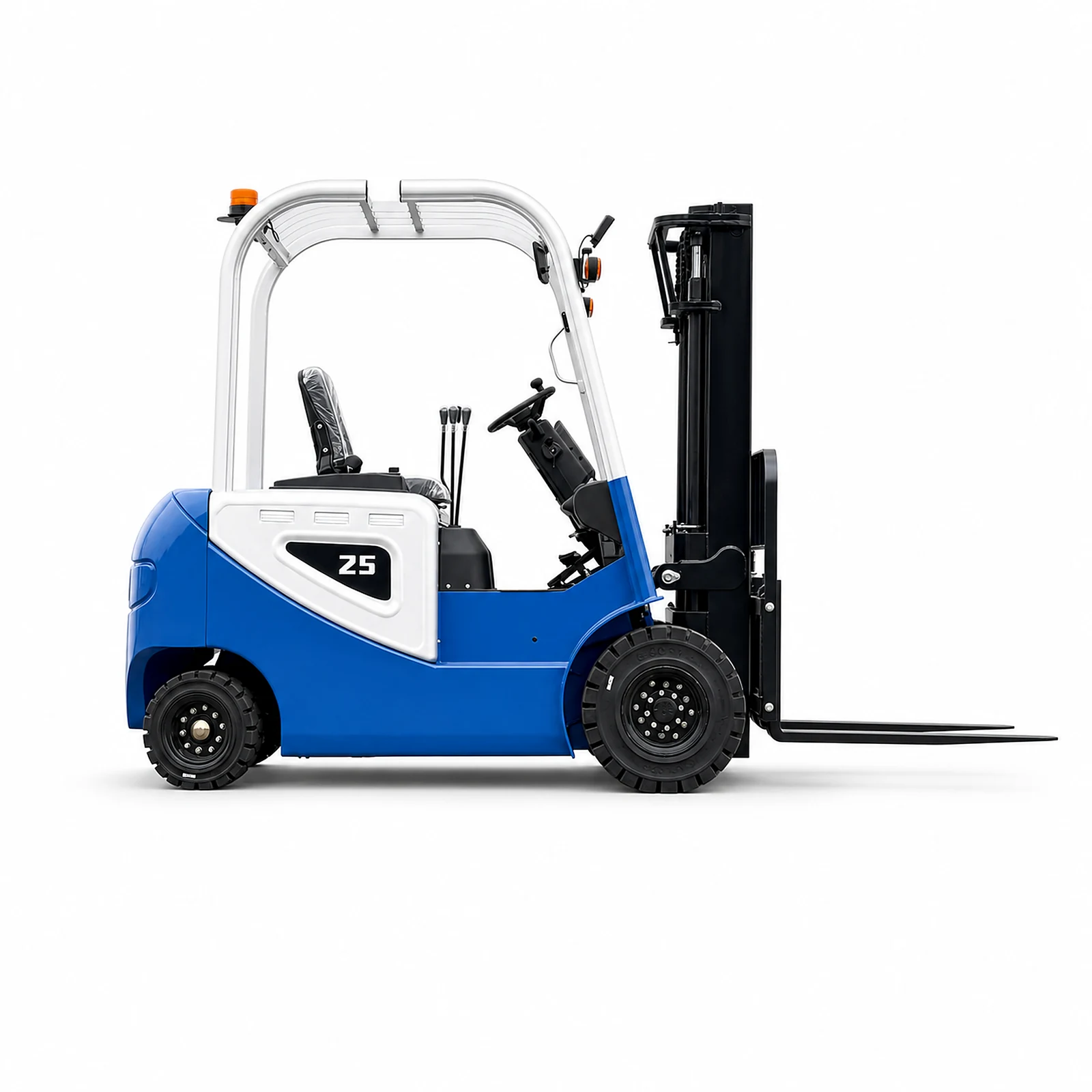

The Hongli HLC25 is a seated electric forklift supplied by Tai’an Hongli Machinery Equipment Co., Ltd. Its reference catalog configuration lists 2,500 kg rated capacity at a 500 mm load center, 1,160 mm overall width and 2,330 mm length to the fork face. The reference battery is 72V / 210Ah lead-acid. These figures identify a catalog package, not every available order specification. Confirm the mast, attachments, load conditions and electrical package for the quoted truck.
Send your destination country, heaviest load and its dimensions, required fork height, pallet orientation, aisle layout, operating environment and expected quantity. Ask Hongli to assess the HLC25 for your site.
A Smaller Turning Radius Does Not Mean a Smaller Stacking Aisle
The supplied configuration sheet lists a 2,370 mm turning radius for the HLC25 and 2,300 mm for the HLC30. Looking at those numbers alone might suggest the HLC30 is the better choice in a tight warehouse. The same sheet gives a different answer for right-angle pallet stacking.
For a 1,000 × 1,000 mm pallet with the stated 200 mm clearance, it lists a 4,000 mm stacking aisle for the HLC25 and 4,300 mm for the HLC30. For a 1,200 × 1,200 mm pallet under the same clearance condition, the figures are 4,150 and 4,500 mm. The truck with the smaller listed turning radius does not have the smaller listed stacking aisle.
There is no contradiction in treating these as different measurements. Turning radius describes one aspect of turning geometry. Right-angle stacking also involves the truck, forks, load and placement movement under specified conditions. A single turning-radius number does not describe that complete maneuver.
These comparisons apply to the reference configurations in the supplied sheet. They are not universal minimum aisle requirements or approval to operate in an aisle exactly equal to a listed value. Different attachments, load overhang, pallet orientation, racks and site conditions need their own assessment.
If the HLC25’s confirmed capacity covers your load, this is a reason to assess it before moving automatically to the HLC30. If it does not cover the load, a smaller stacking-space reference cannot make it suitable. Capacity and site geometry must both work.
Send a layout showing the approach, turn and final placement, together with the actual load dimensions. That allows a useful discussion about the maneuver you need instead of a comparison based only on body width or turning radius.


When the HLC25 Is Worth Considering
The HLC25 is worth assessing when the HLC20 does not cover the confirmed load requirement but the additional dimensions of an HLC30 would complicate the site. Its reference 2,500 kg rating sits between those models’ 2,000 and 3,000 kg ratings, all stated at a 500 mm load center. That does not eliminate the need to check the actual mast, attachment and lifting position.
It is also worth reviewing when the reference stacking geometry matches your warehouse layout and the site can support the actual truck and load. Give us the indoor, outdoor or mixed-use environment, floor conditions, thresholds and dock arrangement. A factory-yard photograph is not evidence of suitability for every outdoor surface or weather exposure.
Do not select the HLC25 simply because your heaviest load is called “2.5 tonnes.” Establish its center of gravity, dimensions and handling height. An attachment or a load projecting farther forward can change the applicable capacity assessment.
Do not buy it as a solution to a low doorway without checking the full truck height. The reference lowered mast is 2,030 mm, while the overhead guard is 2,110 mm. The HLC20 has the same listed heights, so the move between these models does not itself solve that clearance problem.
If the HLC20 already meets the confirmed load and duty, assess whether the extra truck mass and space requirements are necessary. If neither model fits the building, load or charging arrangement, another truck type may be the better purchase.
HLC25 Reference Specifications
The principal values below follow the supplied English catalog and the CPD25-C column of the configuration sheet. The aisle and turning-radius entries come from that sheet. Values in its adjacent CPD30-C and CPD35-C columns are not HLC25 specifications.
| Item | Reference value | Purchasing interpretation |
|---|---|---|
| Model | HLC25 | Confirm the quoted build and identification |
| Operator type | Seated | Assess the actual operating environment |
| Rated capacity | 2,500 kg | Check load center, height, mast and attachments |
| Load center distance | 500 mm | Actual load center must be established |
| Service weight, including battery | 3,300 kg | Truck mass, not rated load or a floor-load approval |
| Length to fork face | 2,330 mm | Excludes the projecting forks |
| Overall width | 1,160 mm | Not a stacking aisle requirement |
| Wheelbase | 1,600 mm | Reference geometry |
| Front overhang | 410 mm | One part of truck and load geometry |
| Battery type | Lead-acid | Confirm the actual battery and compatible charger |
| Battery voltage / nominal capacity | 72V / 210Ah | Not a runtime or charging-time promise |
| Battery weight | 360 kg | Not an approved replacement-weight range |
| Mast lowered height | 2,030 mm | Overhead guard is higher in this reference |
| Overhead guard height | 2,110 mm | Check the entire travel envelope |
| Maximum fork lift height | 3,000 mm | Obtain applicable capacity information |
| Mast extended height | 4,055 mm | Separate from fork and load height |
| Mast tilt, forward / backward | 5° / 10° | Confirm the selected mast |
| Fork dimensions, length × width × thickness | 1,070 × 122 × 40 mm | Confirm pallet and load fit |
| Fork adjustment, outside edges, max. / min. | 1,040 / 100 mm | Source label; confirm the practical adjustment range |
| Ground clearance below mast | 88 mm | Does not approve a ramp or uneven route |
| Turning radius | 2,370 mm | Distinct from right-angle stacking aisle width |
| Stacking aisle, 1,000 × 1,000 mm pallet | 4,000 mm | Sheet states 200 mm clearance |
| Stacking aisle, 1,200 × 1,200 mm pallet | 4,150 mm | Sheet states 200 mm clearance |
The minimum fork-adjustment entry needs clarification before a spacing-critical order. The sheet describes outside-edge adjustment; 100 mm must not be interpreted as a clear gap between the forks. Free lift is not specified in the supplied HLC25 data. Request the confirmed value for the selected mast.
Confirm the Capacity at the Position Where You Need It
The 2,500 kg reference rating is stated at a 500 mm load center. Pallet dimensions alone do not establish the center of gravity of an uneven or overhanging load. Give us the actual load composition, dimensions and required handling position.
A sideshifter or another attachment adds its own mass and geometry. A different mast can require different capacity information. Request the applicable capacity plate and load information for the complete configuration, including the required fork height. Do not use a simple ratio or a load-moment calculation as permission to handle a particular load.
OSHA’s nameplate guidance illustrates ratings tied to stated load centers, lifting heights and attachments. It is a US technical reference; requirements for the destination must be confirmed separately.
The 3,300 kg service weight already includes the reference battery. Do not add its 360 kg again when using that stated mass. Floor, dock and ramp assessment also requires the relevant wheel or axle loads and the supporting structure. Adding truck mass and payload does not by itself establish acceptable loading on a particular floor.
The Mast Must Fit Both the Door and the Rack
Use the full travel envelope when checking doors. The reference overhead guard stands 80 mm above the lowered mast. That difference explains which dimension can control a doorway; it is not a clearance margin to apply on site.
For lifting, check the 4,055 mm extended-mast reference as well as the required fork height and the load above the forks. A 3,000 mm fork lift does not mean the truck needs only 3,000 mm overhead space. Give us the lowest obstruction and the actual rack placement height.
If lifting must take place below a low obstruction, obtain a confirmed free-lift specification for the selected mast. It is not established by either the lowered-mast height or the maximum fork height. Request the actual mast drawing rather than relying on the generic configuration name.
A 72V Battery Is a Configuration Decision, Not a Shift-Length Claim
The supplied model-specific HLC25 data and catalog both list a 72V / 210Ah lead-acid battery. Confirm the quoted battery and compatible charger in the order specification.
Voltage and Ah do not establish working hours per charge. Describe travel distances, lifting frequency, load distribution, shift length and charging windows. Ask for a battery-and-charger assessment based on that duty, together with charger input requirements and the applicable charging instructions.
The HLC20’s reference battery is 60V / 210Ah. Equal Ah figures do not make it interchangeable with the HLC25’s 72V package. Do not select a charger or replacement battery from Ah alone. Confirm connectors, approved electrical and mass requirements and the relevant configuration documentation.
If a lithium option is offered, obtain its own approval, compatible charger and applicable capacity information. A lighter pack is not automatically a suitable substitution. No runtime, charging-time or energy-cost claim is made from the reference battery figures here.
For the site review, identify the proposed charging location, ventilation, available electrical supply and indoor or outdoor exposure. The supplied records do not establish a weather-protection or hazardous-area rating for the truck or charger.

HLC25 Compared With HLC20 and HLC30
The HLC20 lists 2,000 kg rated capacity at a 500 mm load center, 1,100 mm width and 2,230 mm length to the fork face. The HLC25 is 60 mm wider and 100 mm longer on those reference dimensions, with 620 kg more service weight including the battery. The extra rated capacity must solve a confirmed load requirement to justify those differences.
For the stated 1,000 × 1,000 mm pallet and 200 mm clearance condition, the HLC20 sheet lists a 3,850 mm right-angle stacking aisle, compared with 4,000 mm for the HLC25. For the 1,200 × 1,200 mm pallet, the references are 3,950 and 4,150 mm. Confirm your actual movement; these are not universal minimum aisles.
The HLC30 lists 3,000 kg rated capacity at a 500 mm load center, 1,225 mm width and 2,600 mm length to the fork face. It is 65 mm wider and 270 mm longer than the HLC25 on those references, with a 4,150 kg service weight including the battery. It also has a different reference battery, 72V / 260Ah.
Choose between them by the confirmed load, stacking movement, building clearances and duty. The HLC30’s smaller listed turning radius is not a reason to ignore its larger stacking-aisle references, and the HLC25’s smaller body does not permit a load outside its applicable capacity.
Frequently Asked Questions
Can the HLC25 lift any load weighing 2,500 kg?
No. The catalog rating is at a 500 mm load center. Confirm the actual load center, mast, height and attachments against the applicable capacity information.
Why does the HLC30 have a smaller turning radius but a larger stacking aisle?
They are different measurements. The supplied sheet separately specifies turning radius and right-angle stacking space under stated pallet and clearance conditions. Use the full stacking movement for a stacking task, not turning radius alone.
What battery does the reference HLC25 use?
The supplied model-specific HLC25 data and catalog both list 72V / 210Ah lead-acid. Confirm the quoted battery and compatible charger in the order specification.
What is the HLC25’s free-lift height?
Free lift is not specified in the supplied HLC25 data. Request the confirmed value and drawing for the selected mast, especially when lifting below an overhead obstruction.
Will it fit a doorway that clears the 2,030 mm lowered mast?
Not necessarily. The reference overhead guard is 2,110 mm high. Check the actual truck, route and required clearance, including the guard and any accessories.
Is 3,300 kg the truck’s lifting capacity?
No. It is the reference service weight including the battery. Rated capacity is 2,500 kg at the stated 500 mm load center, subject to the applicable configuration and load information.
Request an HLC25 Configuration Review
- Destination country and delivery location.
- Heaviest load, dimensions, center of gravity and pallet orientation.
- Required fork height, rack geometry and attachments.
- Aisle layout, door clearance and the complete placement movement.
- Indoor, outdoor or mixed use; weather, dust and temperature exposure.
- Floor, dock and ramp conditions.
- Shift pattern, charging windows, charging location, ventilation and site power supply.
- Intended use and expected quantity.
Send your HLC25 requirements to Hongli. Tai’an Hongli Machinery Equipment Co., Ltd. can review the reference package and identify the evidence needed for the proposed truck. If the HLC20 already covers the job, or a different truck is required, settle that before comparing prices.
