Reference catalog configuration — rated capacity: 3,500 kg at a 500 mm load center | Overall width: 1,225 mm | Service weight with battery: 4,400 kg | Battery: 72V / 260Ah lead-acid

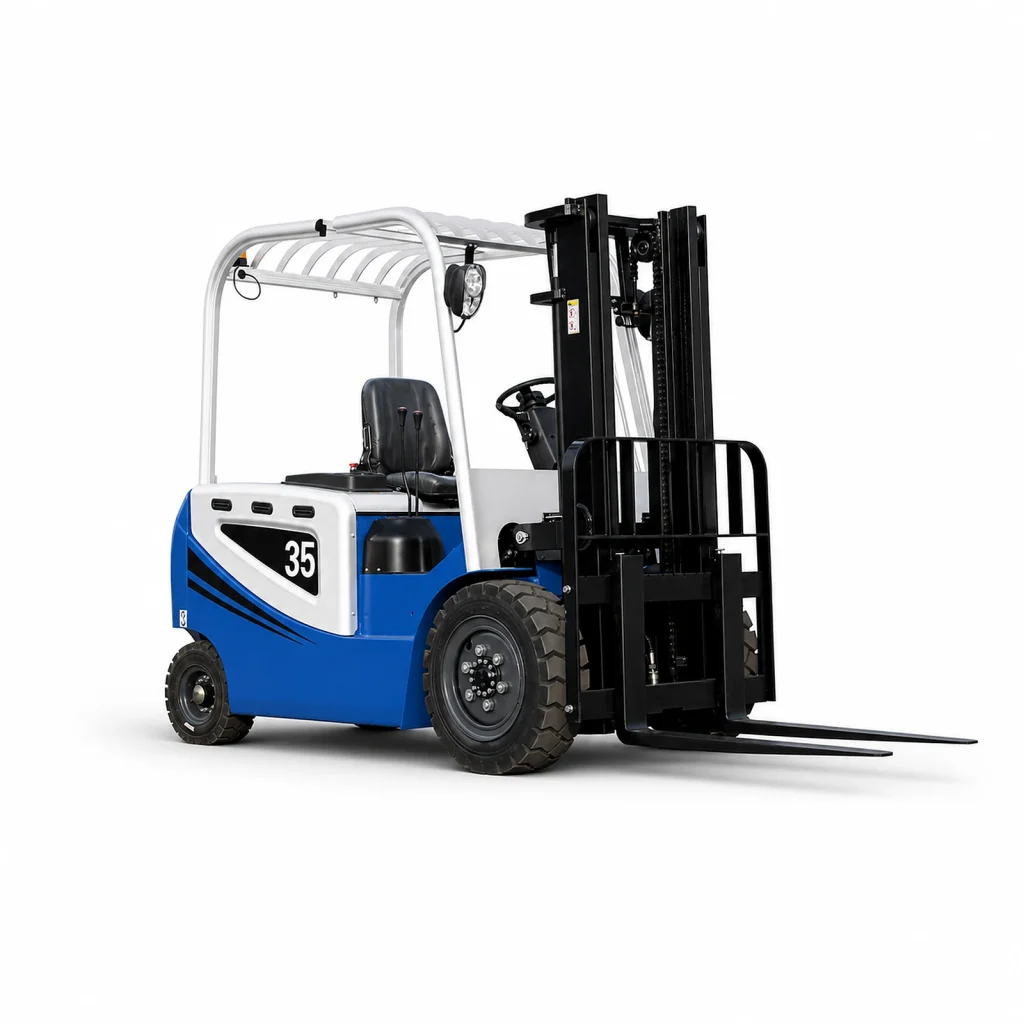

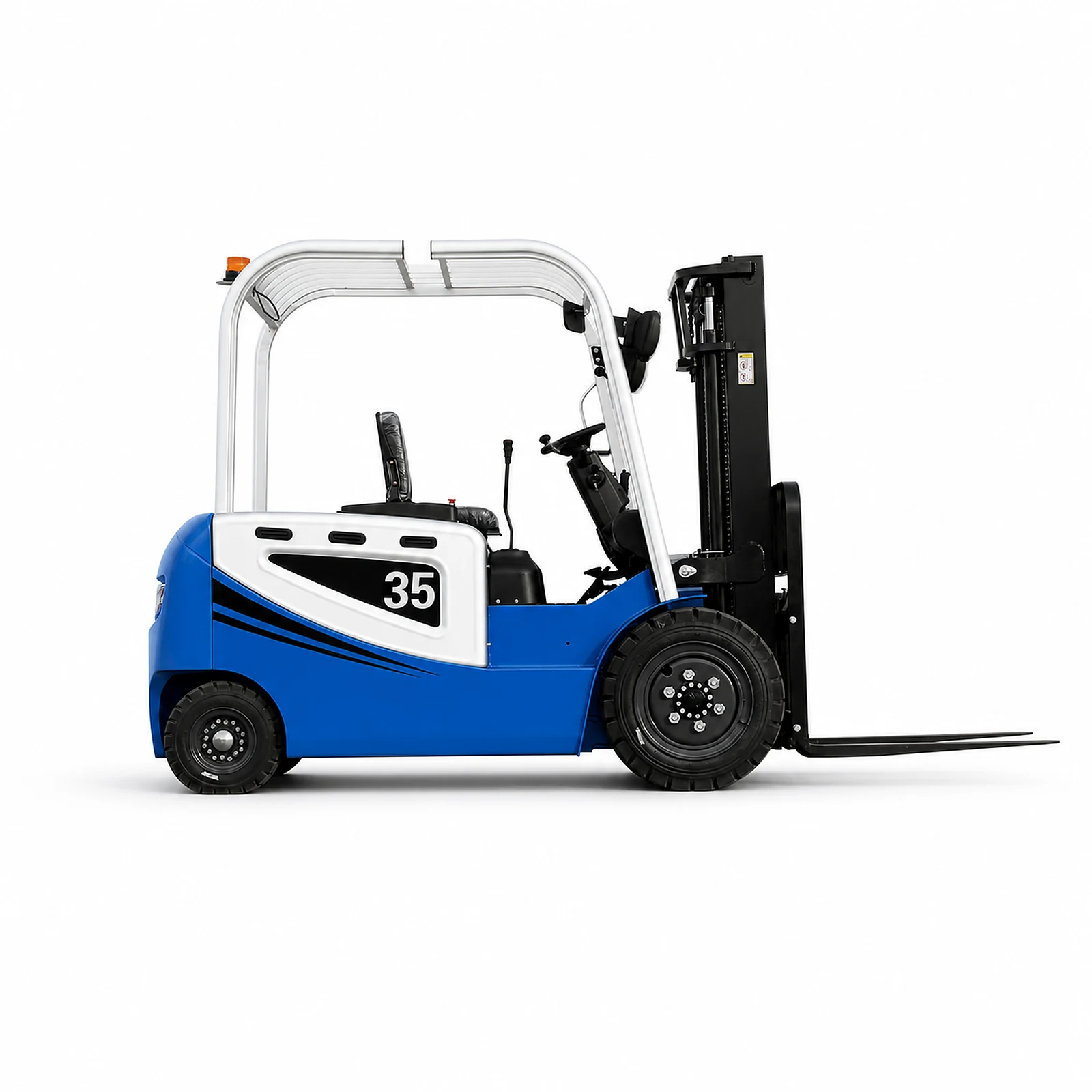

The Hongli HLC35 is a seated electric forklift offered by Tai’an Hongli Machinery Equipment Co., Ltd. Its reference catalog configuration lists 3,500 kg rated capacity at a 500 mm load center, 1,225 mm overall width and 2,600 mm length to the fork face. Service weight is 4,400 kg including the battery. These values describe a reference package, not every available order specification. Confirm the mast, attachments, actual load and electrical package for the quoted truck.
Send your destination country, heaviest load and its dimensions, required fork height, site layout, floor and dock information, operating environment and expected quantity. Ask Hongli to assess the HLC35 for your operation.
The Same Listed Headline Dimensions Do Not Mean the Same Site Requirements
The HLC35 and HLC30 catalogs list the same 1,225 mm overall width and 2,600 mm length to the fork face. Their configuration sheets also list the same reference turning radius and right-angle stacking aisle dimensions. That can make the HLC35 worth assessing when the HLC30’s confirmed capacity does not cover the load but a larger reference body envelope would complicate the building layout.
The mass comparison is different. HLC35 service weight is 4,400 kg including the battery, compared with 4,150 kg for the HLC30. The HLC35 is therefore 250 kg heavier before carrying a load, despite those matching headline dimensions.
Combined truck-and-nominal-load mass is higher for the HLC35, but structural assessment requires actual axle or wheel loads and site conditions. The catalog figures do not approve a floor, dockboard, trailer or ramp.
The supplied configuration sheet does not provide axle loads. Obtain the relevant loading information for the actual truck and load before the responsible site specialist assesses the route.
If your site already uses an HLC30, do not assume the same floor or dock assessment automatically covers an HLC35. Supply the actual load and route, then obtain the relevant truck loading information for review by the responsible site or structure specialist. An unchanged body width is not a structural assessment.
This is the practical question behind the capacity upgrade: does the additional confirmed capacity solve your load requirement, and can the complete operating route accommodate the truck and load? Both answers matter.


When the HLC35 Is Worth Considering
Consider the HLC35 when you need a higher confirmed load capacity while retaining the HLC30’s listed overall width and length to fork face. Confirm the required load center, height and attachment configuration: the reference 3,500 kg rating is not a blanket approval for every load described as 3.5 tonnes.
It is also worth reviewing when the HLC30 reference footprint fits your building but a capacity increase is needed. The matching catalog dimensions and stacking references make this a specific comparison to investigate. They do not prove identical handling behavior for different attachments, actual loads or operating conditions.
Do not choose the HLC35 simply to avoid measuring a long or uneven load. A higher nominal rating does not remove the need to establish the actual load center or obtain configuration-specific capacity information.
If the HLC30 already covers the work, identify what the heavier HLC35 would solve before choosing it. Do not assume that the same battery gives longer runtime, or that the same width allows use on any surface that supported another truck.
If the floor, dock, access route or charging arrangement is unsuitable, another truck or a different handling method may be the better purchase. Describe indoor, outdoor or mixed use, including weather exposure, surfaces and the full movement from collection to placement.
HLC35 Reference Specifications
The principal values below follow the supplied HLC35 English catalog and CPD35-C configuration sheet. The turning, aisle and free-lift values come from the model-specific sheet. Confirm the actual ordered package.
| Item | Reference value | Purchasing interpretation |
|---|---|---|
| Model | HLC35 | Confirm the quoted build and identification |
| Operator type | Seated | Assess the operating environment |
| Rated capacity | 3,500 kg | Applicable load center, mast, height and attachment conditions |
| Load center distance | 500 mm | Actual load center must be established |
| Service weight, including battery | 4,400 kg | Truck mass, not lifting capacity or floor-load approval |
| Length to fork face | 2,600 mm | Excludes the projecting forks |
| Overall width | 1,225 mm | Not a stacking aisle requirement |
| Wheelbase | 1,850 mm | Reference geometry |
| Front overhang | 467 mm | Part of the truck and load geometry |
| Battery type | Lead-acid | Confirm the ordered battery and charger |
| Battery voltage / nominal capacity | 72V / 260Ah | Does not establish shift duration |
| Battery weight | 430 kg | Not an approved replacement-weight range |
| Mast lowered height | 2,057 mm | Overhead guard is higher in this reference |
| Overhead guard height | 2,200 mm | Check the actual travel envelope |
| Maximum fork lift height | 3,000 mm | Confirm applicable capacity at the required position |
| Mast extended height | 4,200 mm | Separate from fork height and load height |
| Free lift | 120 mm | Reference mast only; confirm the actual definition and mast drawing |
| Mast tilt, forward / backward | 5° / 10° | Reference mast arrangement |
| Fork dimensions, length × width × thickness | 1,070 × 122 × 45 mm | Confirm pallet and load fit |
| Fork adjustment, outside edges, max. / min. | 1,100 / 244 mm | Not the clear gap between the forks |
| Ground clearance below mast | 82 mm | Does not approve a ramp or uneven route |
| Reference tire type | Pneumatic | Confirm the actual tires and site suitability |
| Turning radius | 2,300 mm | Distinct from stacking aisle width |
| Stacking aisle, 1,000 × 1,000 mm pallet | 4,300 mm | Sheet states 200 mm clearance |
| Stacking aisle, 1,200 × 1,200 mm pallet | 4,500 mm | Sheet states 200 mm clearance |
The aisle figures are not universal minimum aisle requirements. They apply to the reference configuration under the stated pallet and clearance conditions. Confirm the actual load, attachment, orientation, racks and maneuver.
Confirm Capacity for the Load You Actually Handle
The reference rating pairs 3,500 kg with a 500 mm load center. Establish the actual center of gravity of the load rather than inferring it from pallet size alone. Uneven contents, overhang and attachments can change the assessment.
Request the capacity plate and applicable load information for the complete truck, including the chosen mast, required height and any sideshifter or other attachment. The 3,000 mm maximum fork height is not independent evidence that every nominally rated load is approved there. Do not use a simple load-moment ratio as permission to lift.
OSHA’s nameplate guidance illustrates capacity information tied to stated load centers, heights and attachments. It is a US technical reference, not a claim that one jurisdiction’s requirements apply to every destination. Confirm the applicable local requirements and documentation.
The capacity plate should correspond to the delivered configuration. A body marking or the model number cannot replace it, and an attachment change must not be treated as capacity-neutral without the appropriate approval and information.
Check the Door, Rack and Stacking Movement Separately
The reference overhead guard is 2,200 mm high, while the lowered mast is 2,057 mm. A doorway that clears the mast may still obstruct the guard. Check the complete truck and route, including accessories, thresholds and changes in floor level.
At the rack, the reference extended mast is 4,200 mm high even though maximum fork lift is 3,000 mm. Include the mast, load above the forks and any overhead obstruction when assessing the placement position.
The sheet’s 120 mm free-lift entry belongs to its reference mast. It is not evidence that any optional mast shares the same value or that the truck can stack inside an arbitrary low space. Request the selected mast’s drawing when free lift matters.
For right-angle stacking, assess the stated aisle references with your actual pallets and load overhang. Matching the HLC30’s listed aisle dimensions does not eliminate the need to review an attachment or different load. Neither body width nor turning radius is interchangeable with stacking aisle width.
The Same Battery Reference Does Not Guarantee the Same Runtime
Both the HLC35 and HLC30 list a 72V / 260Ah lead-acid battery and 430 kg reference battery weight. Those figures identify an electrical package. They do not establish equal energy use, equal runtime or a full shift for either truck.
Describe the load distribution, travel distances, lifting frequency, working hours and charging breaks. A heavier truck, different loads and a different route require a duty assessment rather than an assumption based on matching battery ratings.
Obtain the battery and charger specifications, charger input requirements, connectors and manufacturer’s charging instructions. Confirm the charging location, ventilation and available site power. No charger-output or measured duty data is supplied here to support a charging-time or runtime promise.
Battery replacement needs the approved electrical and mass requirements. A lithium option, if offered, requires its own approved configuration, compatible charger and applicable capacity documentation. Do not assume a lighter pack can replace the reference lead-acid battery without affecting the truck’s configuration.
The supplied reference tire type is pneumatic. Confirm the actual tires, route, surface condition and ground or dock constraints before choosing the truck. A tire description does not establish a rough-terrain, weather-protection or hazardous-area rating.

HLC35 Compared With HLC30 and HLC25
The HLC30 lists 3,000 kg rated capacity at a 500 mm load center and 4,150 kg service weight including the battery. Its reference width, length to fork face, mast heights, battery and stacking-aisle entries match the HLC35’s listed values. The HLC35 therefore merits assessment when more confirmed capacity is needed within those reference dimensions, but the additional 250 kg truck mass and actual load conditions still require review.
The HLC25 lists 2,500 kg rated capacity at the same stated load center, 1,160 mm width and 2,330 mm length to the fork face. Compared with it, the HLC35 is 65 mm wider, 270 mm longer and 1,100 kg heavier in reference service weight including the battery.
The HLC25 also has a different 72V / 210Ah battery and smaller stated stacking-aisle references: 4,000 mm for the 1,000 × 1,000 mm pallet and 4,150 mm for the 1,200 × 1,200 mm pallet, each with 200 mm clearance in its sheet. If its confirmed capacity covers the load, it is worth assessing before accepting the HLC35’s larger space and mass requirements.
Frequently Asked Questions
Can the HLC35 lift every load weighing 3,500 kg?
No. The reference rating is at a 500 mm load center. Verify the actual load center, mast, lifting height and attachments against the applicable capacity information.
Is the HLC35 larger than the HLC30?
Their catalogs list the same 1,225 mm width and 2,600 mm length to the fork face. The HLC35’s reference service weight is 250 kg higher. Confirm the actual builds rather than treating matching headline dimensions as identical trucks.
Can it use a dock or floor already assessed for an HLC30?
That cannot be approved from dimensions alone. Obtain the actual truck and load information, wheel or axle loads and the supporting structure’s assessment. The HLC35’s higher service mass and intended load must be included.
Does the 72V / 260Ah battery last as long as the HLC30’s?
The matching battery reference does not establish equal runtime. Duty, loads, travel and charging arrangements must be assessed for the actual operation. The available documents do not provide a runtime comparison.
Does 120 mm free lift mean it can stack under a low ceiling?
It is only the reference mast’s stated free-lift value. Confirm the actual mast, load height and obstruction. The travel envelope and full extended-mast height remain separate checks.
Is 4,400 kg the lifting capacity?
No. It is the service weight including the reference battery. The stated rated capacity is 3,500 kg at a 500 mm load center, subject to the applicable configuration and load information.
Request an HLC35 Configuration Review
- Destination country and delivery location.
- Heaviest load, dimensions, center of gravity and pallet orientation.
- Required fork height, mast and attachments.
- Aisle layout, door clearance and rack placement geometry.
- Floor, dock and ramp details, including available structural or loading information.
- Indoor, outdoor or mixed use; weather, dust and temperature exposure.
- Shift pattern, charging windows, charging location, ventilation and site power supply.
- Intended use and expected quantity.
Send your HLC35 requirements to Hongli. Tai’an Hongli Machinery Equipment Co., Ltd. can review the reference package and identify the evidence needed for the proposed truck. If an HLC30 or HLC25 already meets the job, assess that before choosing the higher nominal rating.
