Skid Steer Loaders / Export model

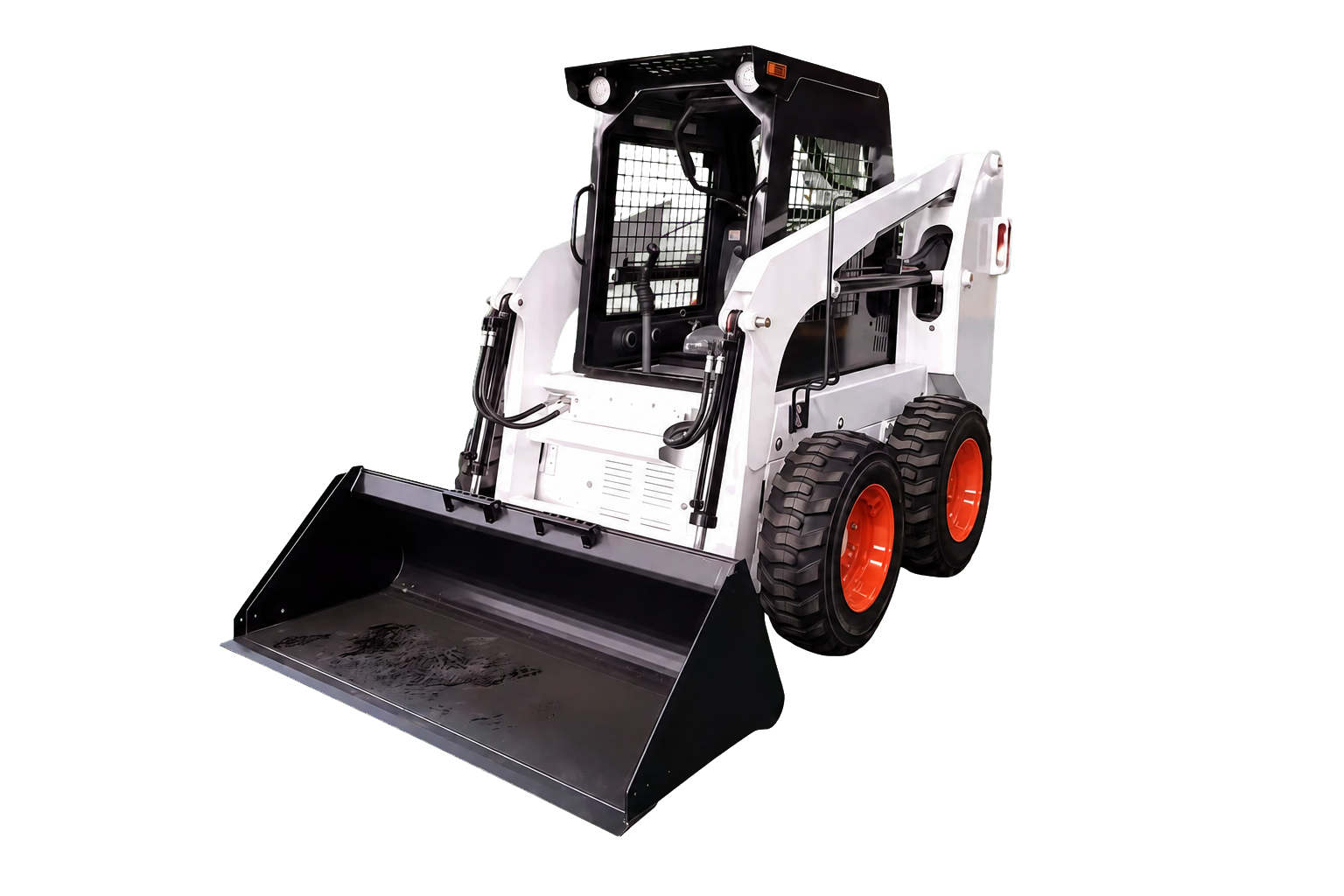

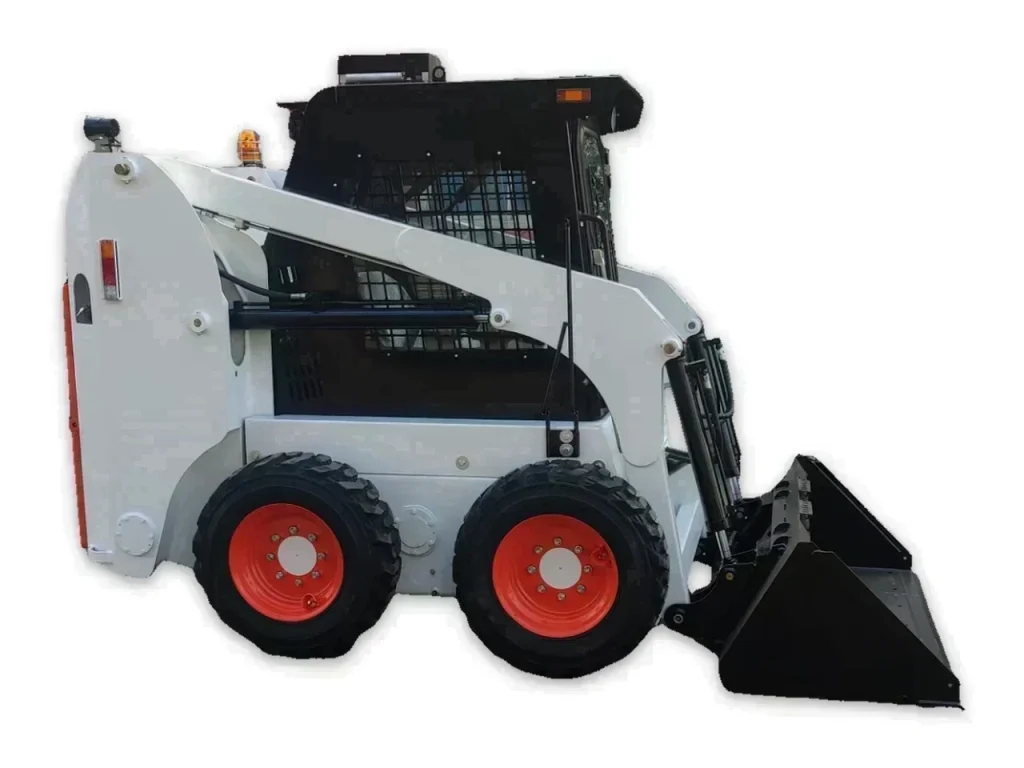

HLY45 Wheeled Skid Steer Loader
HLY45 is a Hongli wheeled skid steer loader with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
- Operating Weight
- 3100 kg
- Bucket Capacity
- 0.4 m³
Evidence before quotation
Confirm the machine before you order
Use the current model photos and verified specifications on this page, then ask our export team for the configuration and shipment records required for your order.
- 3 model photosMatched to this product record
- Specification checkConfiguration confirmed before quotation
- Pre-shipment evidencePacking and loading photos available on request
Product Overview
Built for work. Ready for export.
HLY45 is a Hongli wheeled skid steer loader with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HLY45
- Maximum Travel Speed
- 12 km/h
- Tire Model
- 10 – 16.5
- Rated Operating Capacity
- 700 kg
- Tipping Load
- 1400 kg
- Bucket Capacity
- 0.4 m³
- Rated Hydraulic Flow
- 75 L/min
- High-Flow System
- -
- Fuel Tank Capacity
- 65 L
- Hydraulic Oil Tank Capacity
- 65 L
Verified model data
Technical Specifications
Standard Configuration
- Model
- HLY45
- Maximum Travel Speed
- 12 km/h
- Tire Model
- 10 – 16.5
- Rated Operating Capacity
- 700 kg
- Tipping Load
- 1400 kg
- Bucket Capacity
- 0.4 m³
- Rated Hydraulic Flow
- 75 L/min
- High-Flow System
- -
- Fuel Tank Capacity
- 65 L
- Hydraulic Oil Tank Capacity
- 65 L
- Operating Weight
- 3100 kg
- Height to Boom Pivot Pin
- 3080 mm
- Overall Height
- 2050 mm
- Length with Bucket
- 3420 mm
- Length without Bucket
- 2640 mm
- Width with Bucket
- 1740 mm
- Track Width (Gauge)
- 1450 mm
- Wheelbase
- 991 mm
- Ground Clearance
- 185 mm
- Gradeability
- 20 %
Attachments & Options
Bucket, forks, auger, breaker, sweeper and other quick-attach tools are available by application.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Farms and yards / Road maintenance / Landscaping / Loading and material handling
Direct factory response
Tell us what you need
Send the destination country, quantity and required attachments. Our export team will reply with configuration, price and lead time.
