Excavators / Export model
HL135 Medium Excavator
HL135 is a Hongli excavator with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
- Operating Weight
- 13 t
- Bucket Capacity
- 0.53 – 0.64 m³
- Overall Width
- 2490 mm
Evidence before quotation
Confirm the machine before you order
Use the current model photos and verified specifications on this page, then ask our export team for the configuration and shipment records required for your order.

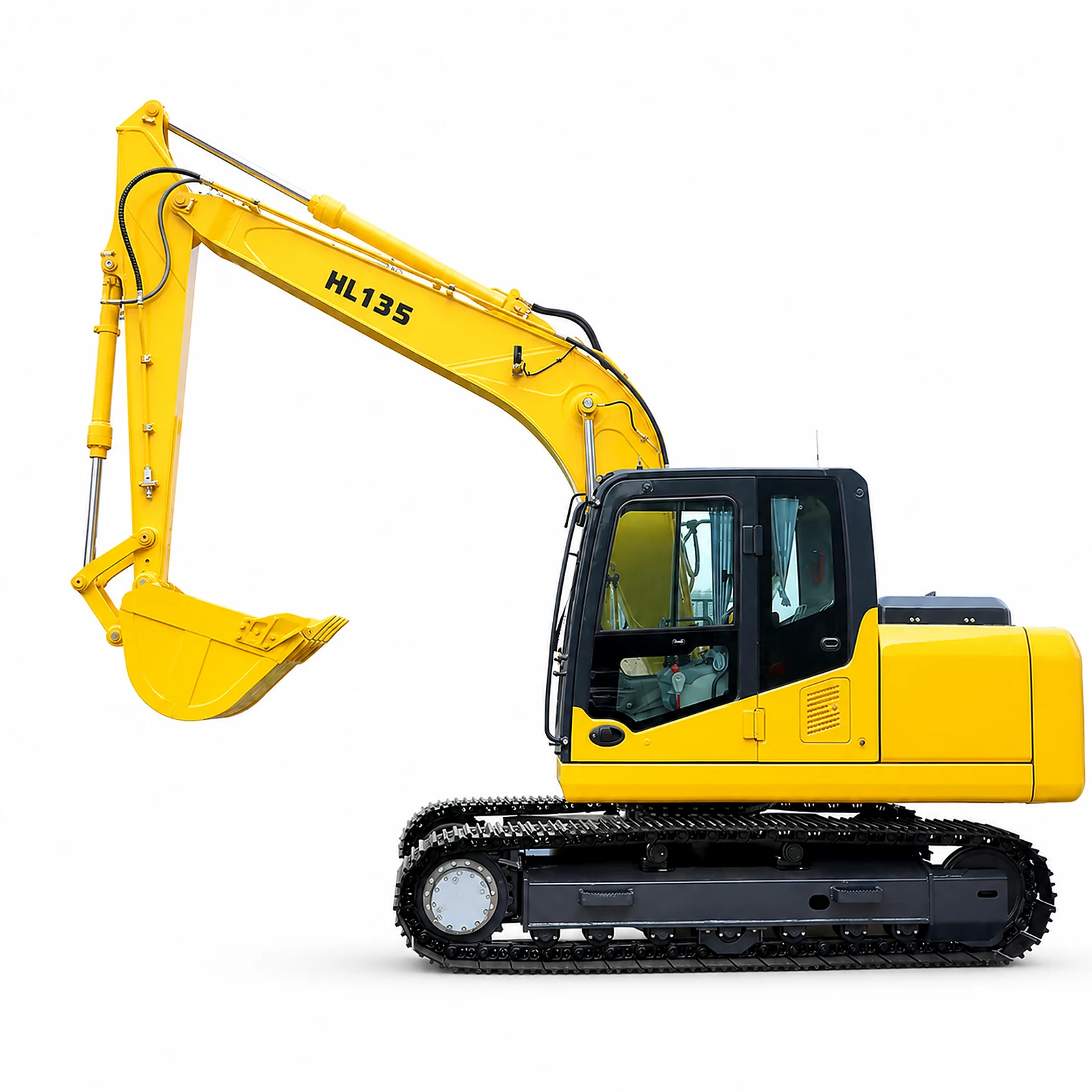

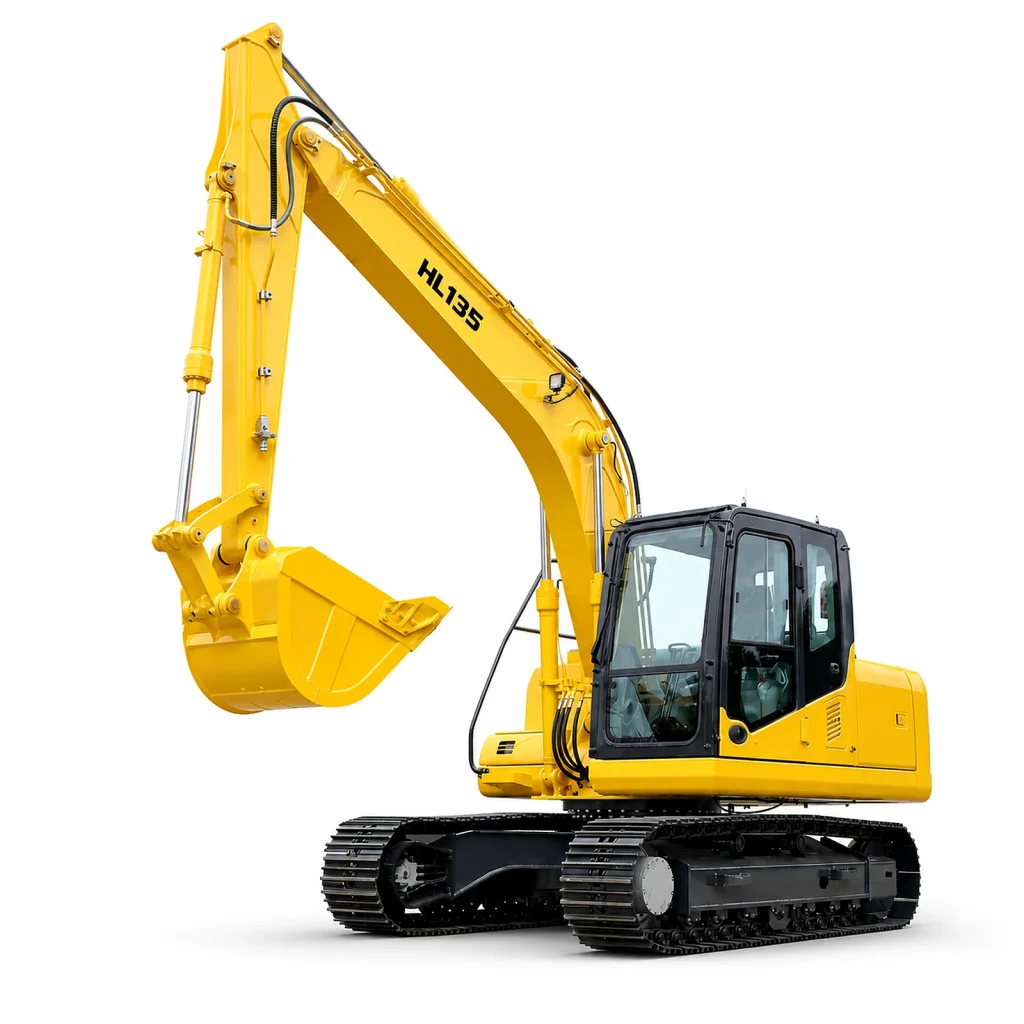

- 3 model photosMatched to this product record
- Specification checkConfiguration confirmed before quotation
- Pre-shipment evidencePacking and loading photos available on request
Product Overview
Built for work. Ready for export.
HL135 is a Hongli excavator with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HL135
- Operating Weight
- 13 t
- Bucket Capacity
- 0.53 – 0.64 m³
- Fuel Tank Capacity
- 247 L
- Travel Speed
- 5.3/3.1 km/h
- Swing Speed
- 12 rpm
- Gradeability
- 70 %
- Max. Bucket Digging Force
- 100 kN
- Arm Length
- 2500 mm
- Boom Length
- 4600 mm
Verified model data
Technical Specifications
Standard Configuration
- Model
- HL135
- Operating Weight
- 13 t
- Bucket Capacity
- 0.53 – 0.64 m³
- Fuel Tank Capacity
- 247 L
- Travel Speed
- 5.3/3.1 km/h
- Swing Speed
- 12 rpm
- Gradeability
- 70 %
- Max. Bucket Digging Force
- 100 kN
- Arm Length
- 2500 mm
- Boom Length
- 4600 mm
- Ground Pressure
- 38 kPa
- Hydraulic Oil Tank Capacity
- 130 L

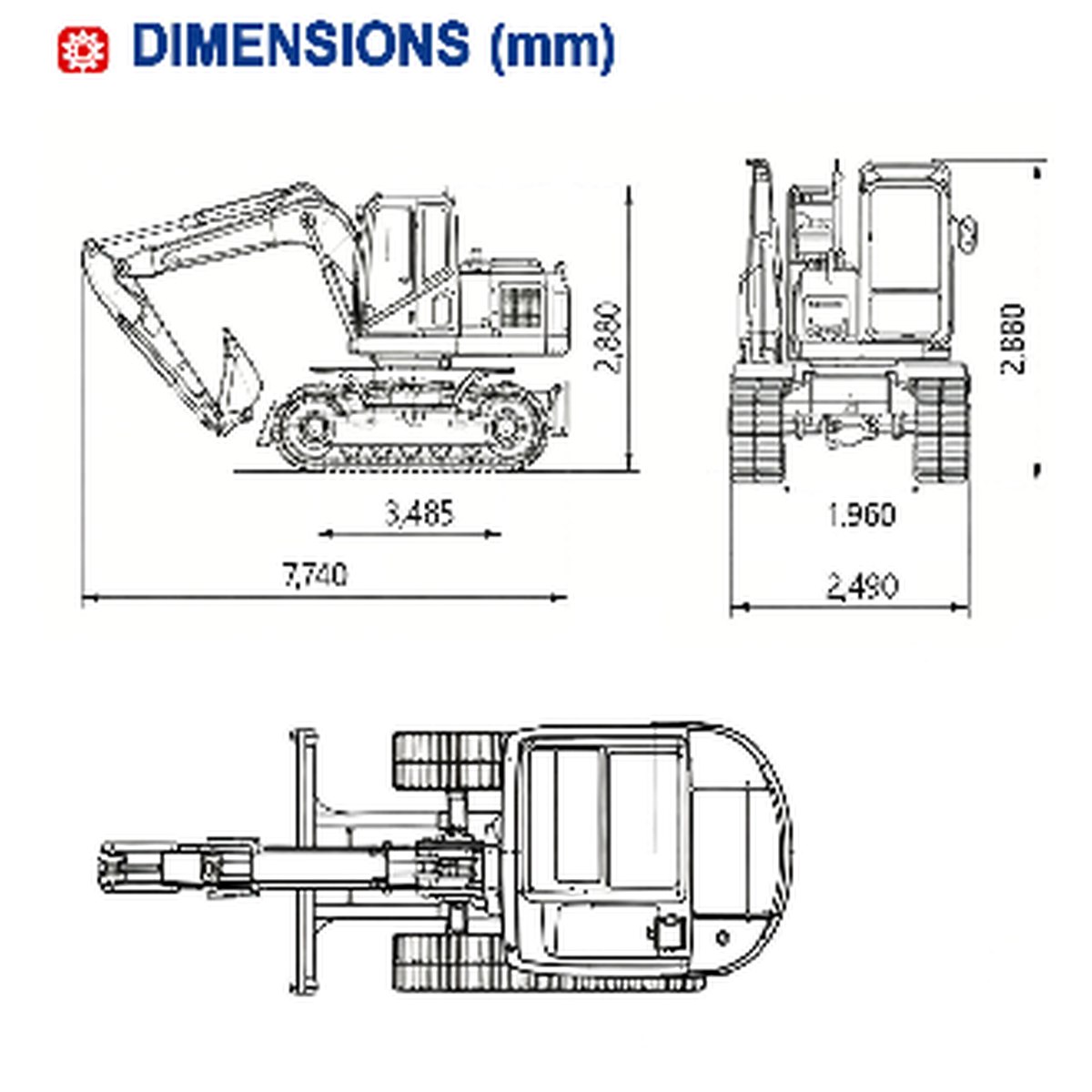

- Overall Length
- 7740 mm
- Overall Width
- 2490 mm
- Overall Height (to Top of Boom)
- 2880 mm
- Overall Height (to Top of Cab)
- 2830 mm
- Counterweight Ground Clearance
- 870 mm
- Min. Ground Clearance
- 430 mm
- Counterweight Height
- 1935 mm
- Transport Length (Ground)
- 4410 mm
Attachments & Options
Buckets, hydraulic breaker, ripper, grapple and quick coupler options are available.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Earthmoving / Road construction / Foundation work / Dealer and fleet projects
Direct factory response
Tell us what you need
Send the destination country, quantity and required attachments. Our export team will reply with configuration, price and lead time.
