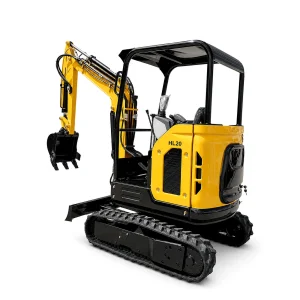

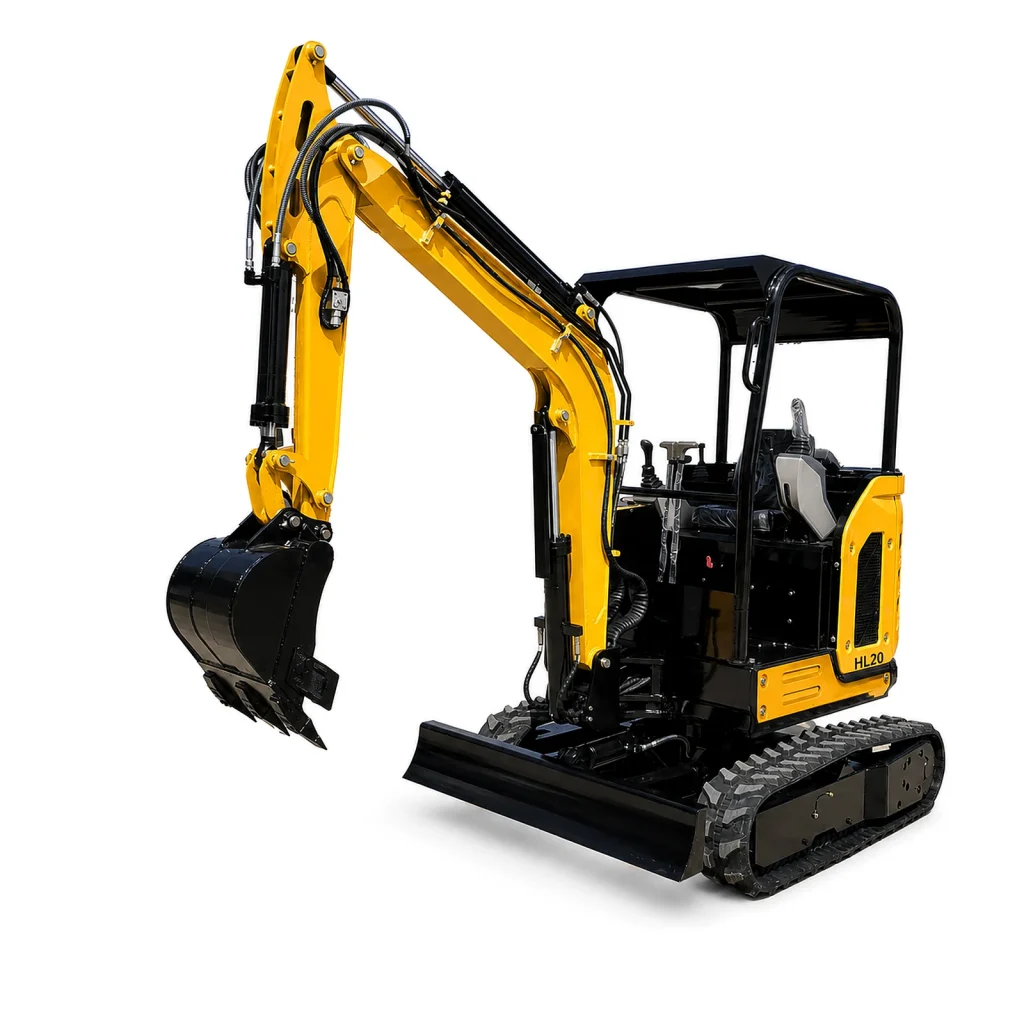

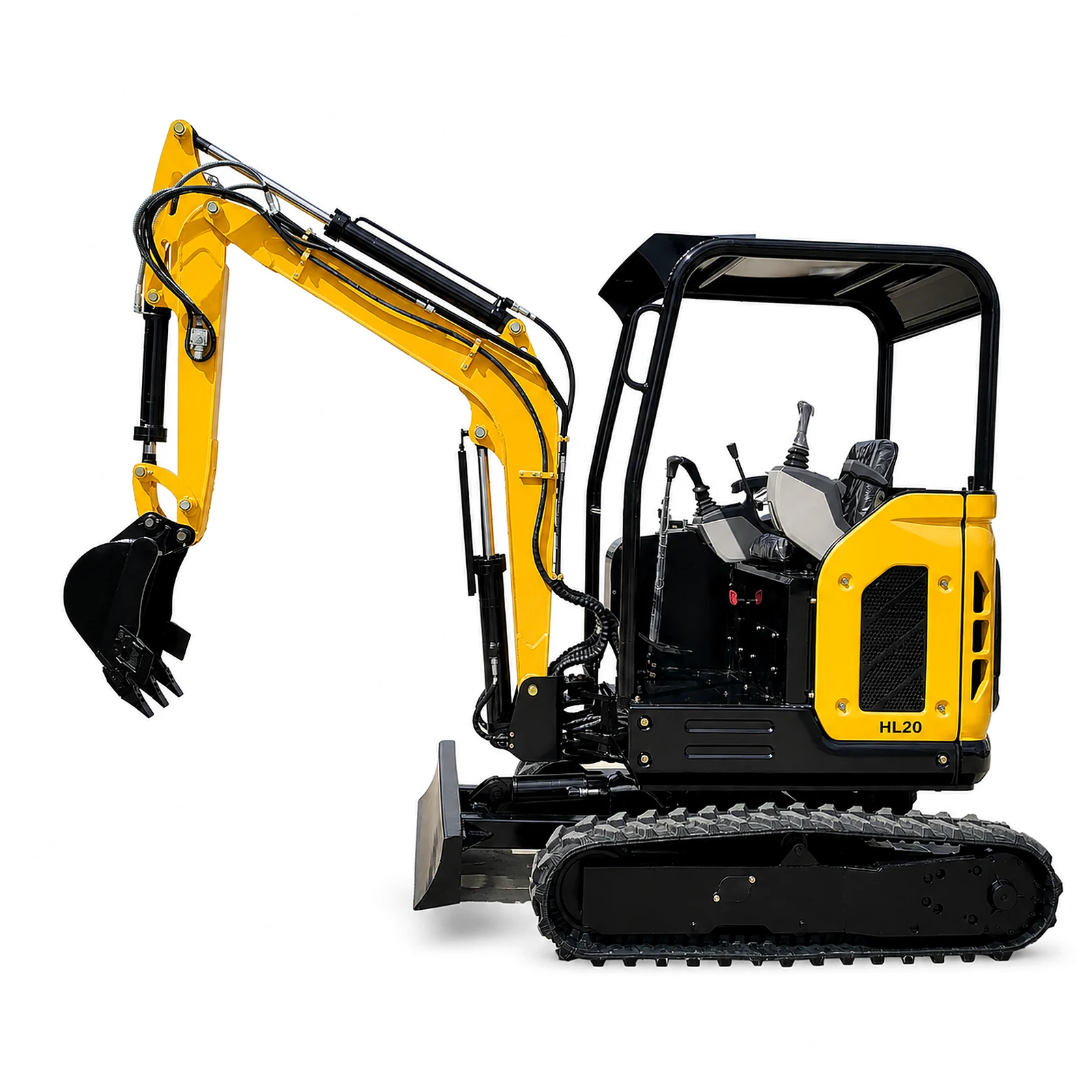

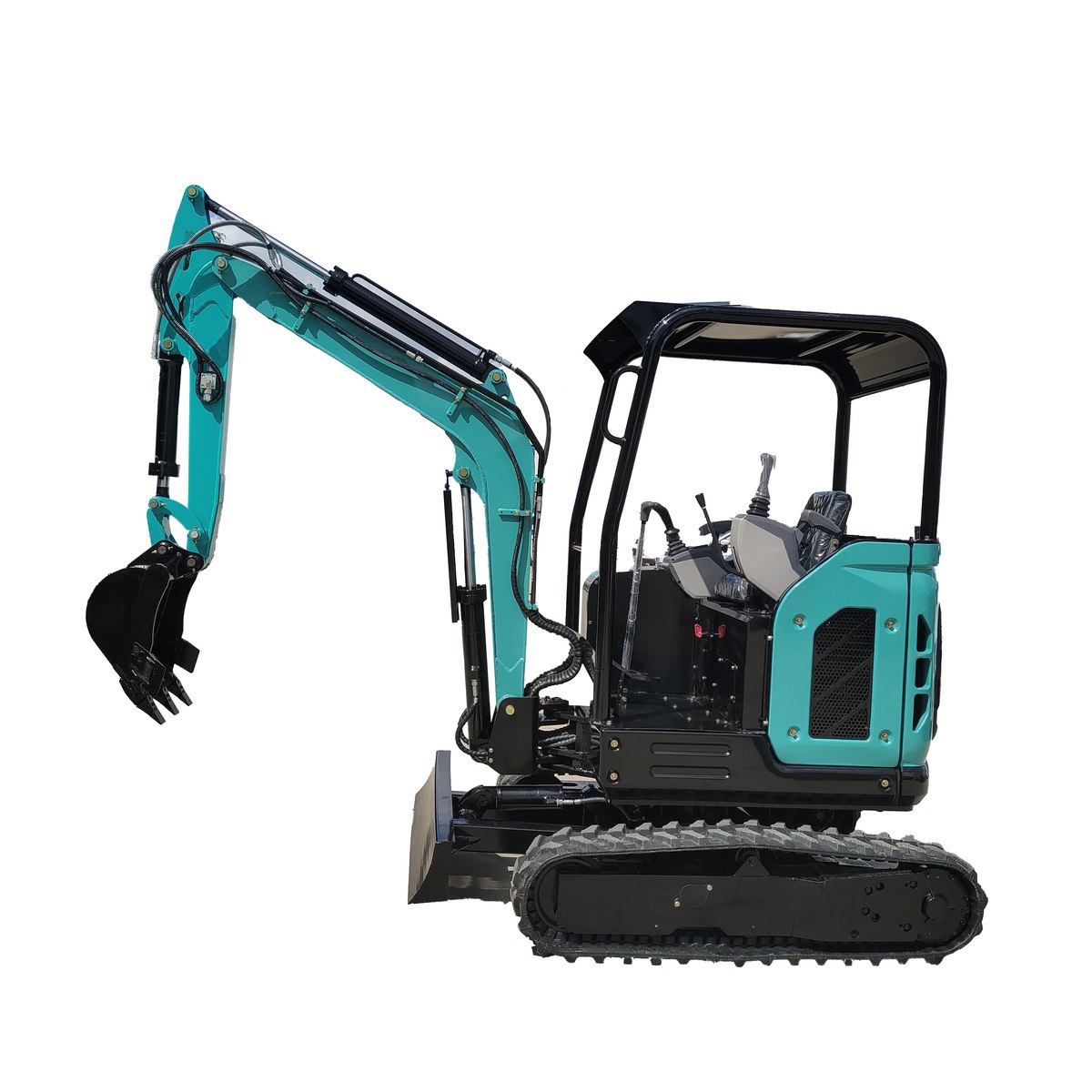

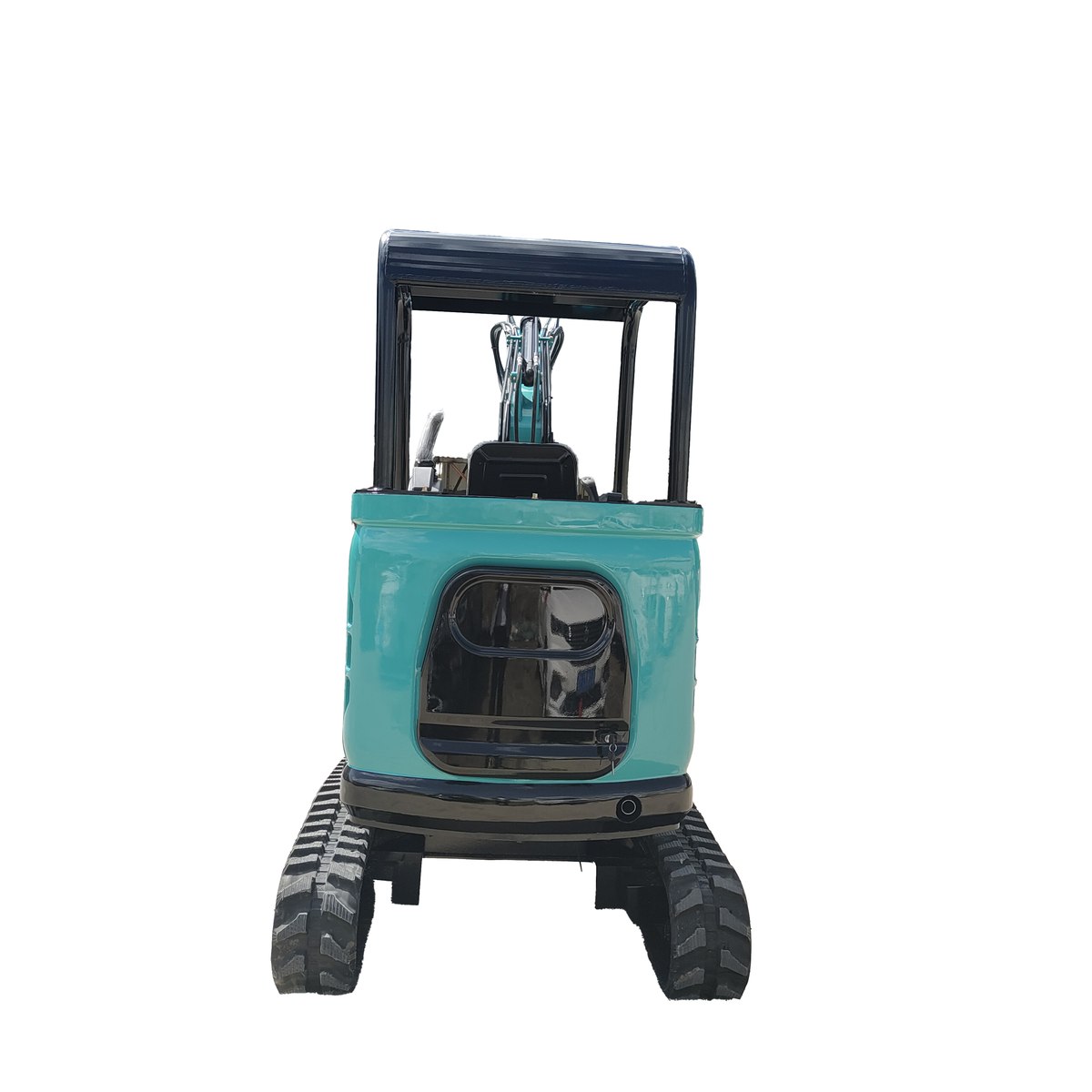

HL20 Small Excavator
HL20 2.1 ton compact excavator with a 0.07 m³ bucket, 1060 mm body width and 2418 mm digging depth for confined construction work.
- Operating Weight
- 2.1 ton
- Bucket Capacity
- 0.07 m³
- Overall Width
- 1060 mm
Evidence before quotation
Confirm the machine before you order
Use the current model photos and verified specifications on this page, then ask our export team for the configuration and shipment records required for your order.
- 3 model photosMatched to this product record
- Specification checkConfiguration confirmed before quotation
- Pre-shipment evidencePacking and loading photos available on request
Product Overview
Built for work. Ready for export.
HL20 is a Hongli excavator with technical data verified against the supplied product catalog. Final order configuration is confirmed for the destination market.
Key Specifications
- Model
- HL20
- Fuel Tank
- 16 L
- Operation Weight
- 2.1 ton
- Hydraulic Tank
- 22 L
- Digging Bucket Capacity
- 0.07 m³
- Bucket Width
- 430 mm

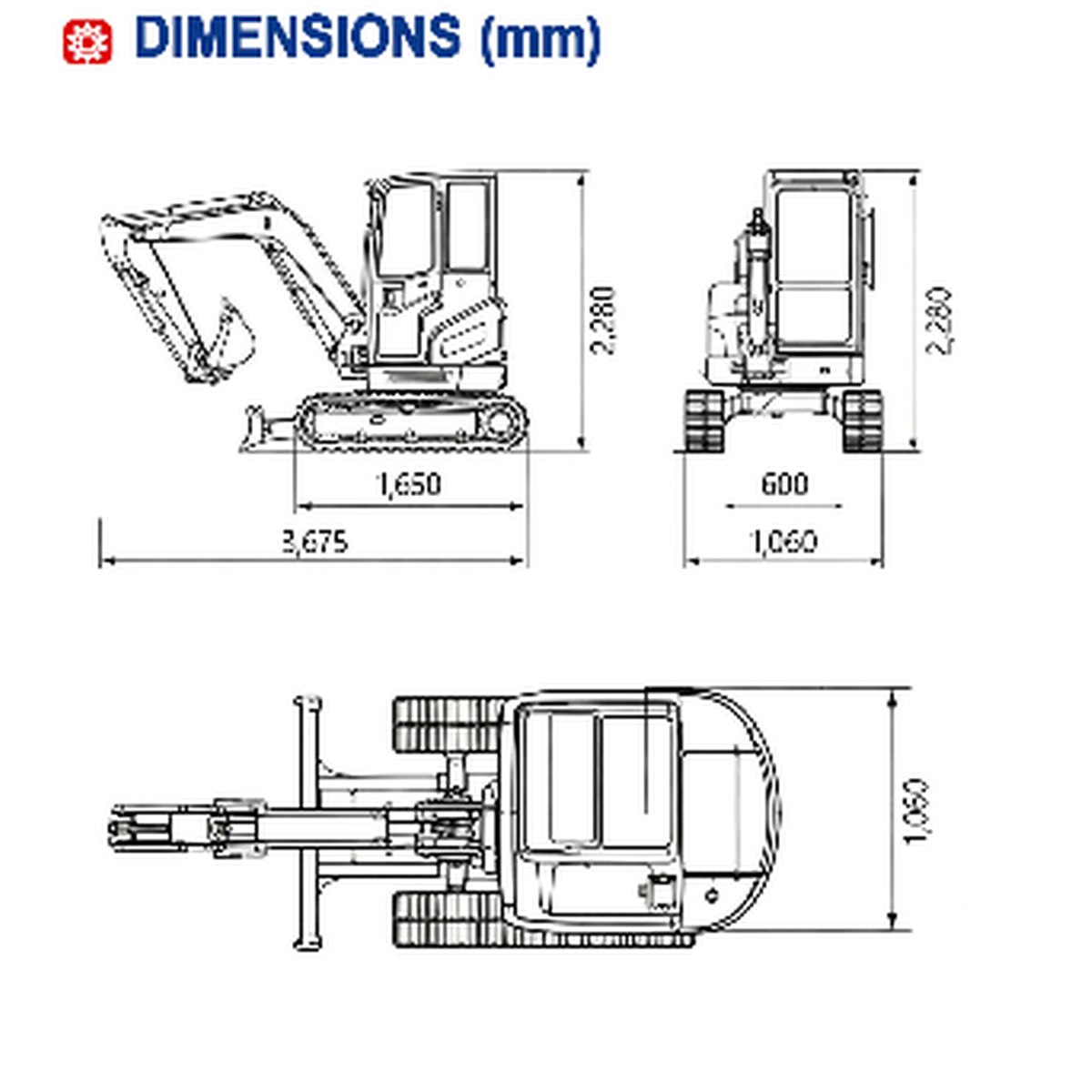

- Overall Length
- 3675 mm
- Overall Width
- 1060 mm
- Overall Height
- 2280 mm
- Body Width
- 1060 mm
Verified model data
Technical Specifications
Standard Configuration
- Model
- HL20
- Fuel Tank
- 16 L
- Operation Weight
- 2.1 ton
- Hydraulic Tank
- 22 L
- Digging Bucket Capacity
- 0.07 m³
- Bucket Width
- 430 mm
- Overall Length
- 3675 mm
- Overall Width
- 1060 mm
- Overall Height
- 2280 mm
- Body Width
- 1060 mm
- Body Swing Radius
- 894 mm
- Track Type
- Rubber Tracks
- Body Swing Angle
- 360 °
- Track Width
- 230 mm
- Boom Swing Angle (L/R)
- 55/45 °
- Track Length
- 1650 mm
- Max. Grade Ability
- 35 °
- Max. Digging Radius
- 4112 mm
- Max. Digging Depth
- 2418 mm
- Max. Digging Height
- 3210 mm
- Max. Unloading Height
- 2125 mm
- Min. Swing Radius
- 2148 mm
- Max. Dozer Blade Digging Depth
- 297 mm
- Max. Dozer Blade Lifting Height
- 230 mm
- Operating Weight
- 2.1 ton
- Engine
- Laidong diesel engine
- Bucket Capacity
- 0.07 m³
Attachments & Options
Buckets, auger, hydraulic breaker, ripper, thumb and quick coupler options are available.
Export Packing
Packaging dimensions and shipping gross weight are not provided in the source catalog and must be confirmed after final packing.
Typical Applications
Construction / Utility trenching / Farm and landscaping work / Municipal maintenance
