Catalog operating weight: 3.8 t | Bucket capacity: 0.11 m³ | Overall width: 1,700 mm | Maximum digging depth: 3,071 mm | Maximum unloading height: 3,382 mm

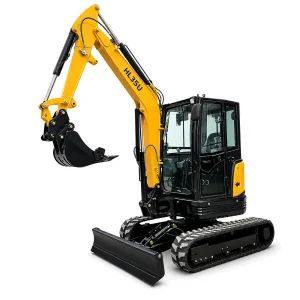

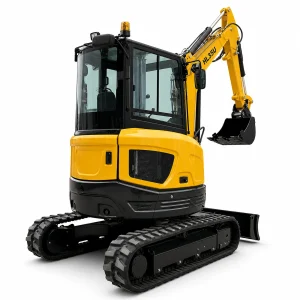

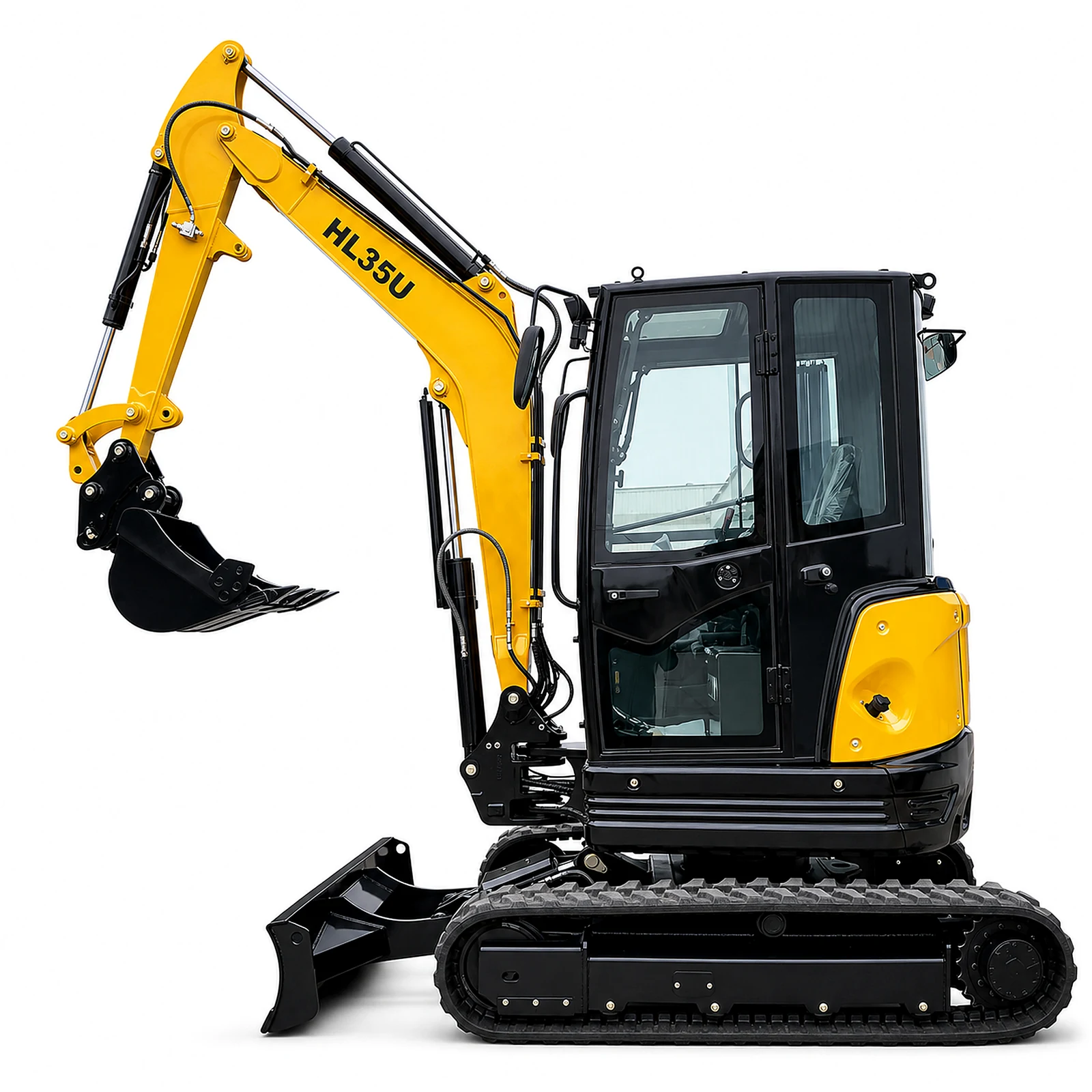

The Hongli HL35U is a small excavator supplied by Tai’an Hongli Machinery Equipment Co., Ltd. Its English catalog lists 3.8-tonne operating weight, a 0.11 m³ digging bucket, 1,700 mm overall width and 3,071 mm maximum digging depth. Maximum digging radius is 5,251 mm and maximum unloading height is 3,382 mm. These are separate working-range limits. Engine, tracks, cab and attachments must be confirmed for the actual order.
Send your destination country, required excavation geometry, receiving-vehicle height, access dimensions, transport constraints, attachments and expected quantity. Ask Hongli to assess the HL35U for your work.
More Machine Weight Does Not Necessarily Mean More Digging Depth
The HL35U and HL35 provide a useful example of why model selection needs more than a weight comparison. The HL35 catalog lists 2.5 t operating weight and 3,058 mm maximum digging depth. The HL35U lists 3.8 t and 3,071 mm. That is 1.3 t more catalog operating weight, but only 13 mm more maximum depth.
The more substantial differences are elsewhere in the reference working envelope. Maximum digging radius increases from 4,477 mm to 5,251 mm, a difference of 774 mm. Maximum unloading height increases from 2,203 mm to 3,382 mm, a difference of 1,179 mm. These arithmetic differences describe catalog boundaries; they do not prove faster production, greater lifting capacity or a useful reach at every height.
For a buyer who only needs a particular trench depth, the HL35U is therefore not automatically the better purchase. Its additional width and mass may introduce access and transport constraints without resolving the task that matters. For a buyer evaluating a discharge height or a different working position, its geometry is worth investigating.
Describe where the machine can stand, the trench or receiving vehicle, and the required bucket position. Then assess the relevant working envelope. Do not combine maximum radius, depth and unloading height into an imaginary position that achieves all three together.
The catalog bucket changes from 0.1 m³ on the HL35 to 0.11 m³ on the HL35U. That volume difference is not a productivity guarantee. Material density, bucket fill, digging conditions, attachment geometry and the actual cycle all affect the job. Select the machine for the constraint it resolves rather than multiplying bucket capacity by an assumed number of cycles.

Who Should Consider the HL35U?
Consider the HL35U when its verified working range offers a useful solution to your excavation or loading geometry and the site can accommodate the actual machine. It is a candidate for landscaping, drainage, farm maintenance and small construction work when those requirements are specified, not because the application name alone establishes suitability.
Do not choose it if a narrower machine already meets the work and access is limited. Its 1,700 mm overall width is 200 mm greater than the HL35 reference. The HL35U upper-body width is 1,500 mm, but that does not make it a 1,500 mm-wide machine for gate clearance.
Do not choose it merely because its model name includes U and you need zero tail swing. The catalog supplies a body swing radius, but the model suffix is not evidence of a clearance classification. If rear clearance is decisive, request the relevant drawing or a measured demonstration of the actual build.
Do not approve lifting work from machine weight or unloading height. The supplied materials do not include a configuration-specific lifting chart. Similarly, they do not establish digging force, auxiliary hydraulic flow or a continuous-duty attachment capability. Obtain the applicable evidence before buying for those requirements.
HL35U Reference Specifications
The table follows the supplied HL35U English catalog, pages 15–16. Its main dimensions and working-range values agree with the supplied model spreadsheet. The values are references to verify against the ordered configuration.
| Item | Catalog reference | Purchasing interpretation |
|---|---|---|
| Model | HL35U | The suffix does not establish tail-swing classification |
| Operating weight | 3.8 t / 3,800 kg | Not verified loaded transport or packing mass |
| Digging bucket capacity | 0.11 m³ | Volume, not payload or production rate |
| Bucket width | 530 mm | Spreadsheet excludes side teeth; check actual cutting envelope |
| Overall length | 4,945 mm | Confirm actual transport position and attachments |
| Overall width | 1,700 mm | Distinct from upper-body width |
| Overall height | 2,585 mm | Check the selected cab or canopy and overhead clearance |
| Upper-body width | 1,500 mm | Not the overall access width |
| Body swing radius | 858 mm | Confirm measurement definition and actual rear clearance |
| Body rotation | 360° | Surrounding working clearance still required |
| Boom swing, left / right | 68° / 50° | Confirm directional convention and fitted arrangement |
| Maximum digging radius | 5,251 mm | Separate from maximum depth and unloading height |
| Maximum digging depth | 3,071 mm | Not a specified vertical-wall digging depth |
| Maximum digging height | 4,815 mm | Reference boundary, not a lifting rating |
| Maximum unloading height | 3,382 mm | Check the actual discharge position and receiving vehicle |
| Minimum swing radius | 2,250 mm | Different catalog measurement from body swing radius |
| Maximum blade digging depth | 433 mm | Not a load-support rating |
| Maximum blade lifting height | 345 mm | Reference blade geometry |
| Reference track type | Steel tracks | Confirm ordered tracks; spreadsheet lists rubber as an option |
| Track width | 300 mm | Does not establish ground pressure alone |
| Track length | 2,270 mm | Not a verified ground-contact length |
| Fuel tank capacity | 40 L | Does not establish fuel consumption or runtime |
| Hydraulic tank capacity | 41 L | Not total system oil volume or auxiliary flow |
The catalog also lists 35° maximum grade ability. This page does not use that number as a safe working-slope or trailer-ramp angle. Those decisions require the actual operating instructions and site assessment.

Check the Discharge Position, Not Just the Truck Height
The 3,382 mm maximum unloading height is a reason to examine the HL35U when loading geometry is important. It is not a promise that any truck with a lower side height can be loaded effectively. The bucket must clear the side at a useful horizontal position, and the machine must stand where the ground and available space permit.
Provide the receiving height, required discharge position and machine setback. Include the selected bucket and any coupler. A different attachment can change the working geometry; the reference drawing is not a guarantee for every configuration.
The same approach applies below ground. Maximum digging depth is not maximum vertical-wall depth. A trench beside a structure may require a particular wall profile and setback that are not described by a single depth figure. Define that geometry before deciding the HL35U solves it.
Tail Clearance Needs Its Own Evidence
The catalog lists an 858 mm body swing radius and 1,700 mm overall width. Dividing overall width by two gives 850 mm. The closeness of those numbers is not enough to certify zero tail swing: it requires confirmation that the radius uses the appropriate rotation center and rear outline, that the width is the relevant undercarriage envelope, and that both describe the ordered configuration.
Small differences in the reference values, measurement definitions or fitted equipment matter when a wall or obstacle is close. Ask for the actual rear-clearance drawing and check the motion needed on site. Do not use a generic safety margin or assume the track edge is the entire working envelope.
The 2,250 mm minimum swing-radius entry is another measurement. It should not be substituted for the 858 mm body swing radius or treated as a complete all-direction clearance requirement. Our mini excavator size guide explains why individual dimensions need to be tied to the selection constraint.
Order the Configuration, Not the Photograph
The model spreadsheet identifies a Kubota 1703 reference at 18.2 kW. It does not provide a complete engine variant, rated speed, power definition or destination-market approval record. The engine-brand label in the catalog does not resolve those missing details. Ask for the exact engine identification, rating and applicable documents before approval; do not compare this power entry with another model’s differently defined figure.
The spreadsheet also identifies a piston pump, a load-sensing valve arrangement and two-speed travel references of 4.0 / 2.3 km/h. These are configuration-sheet entries rather than promises for every order. Component names do not establish attachment flow, pressure, digging force or actual production. The engine guide helps structure the engine-document request.
Cab, air conditioning, offset boom and hydraulic pilot control appear in the catalog’s optional-equipment list, while the model spreadsheet describes several of them as part of its reference package. Confirm which are included in your quotation. An enclosed cab in a factory photograph does not prove that a canopy order includes a cab or cooling equipment.
For steel or rubber tracks, describe the site surfaces, material and route. Neither option justifies a blanket claim of damage-free travel. Confirm dimensions and mass for the chosen track configuration.
For replacement buckets or powered attachments, verify the mechanical interface and hydraulic requirements separately. The reference 530 mm bucket width does not establish mounting compatibility. Use our bucket fitment checklist for the connection measurements.
Transport: Confirm the Loaded Mass Before Selecting a Trailer
The catalog’s 3,800 kg operating weight is not the confirmed mass of the machine and cargo you will transport. Establish what the reference weight includes before adding or subtracting anything. Count the actual cab, tracks, coupler, fitted bucket, loose attachments and other cargo once; do not add a bucket again if it is already included in the measured machine mass.
Trailer gross rating and usable payload are different limits. Assess the trailer’s own mass, the loaded machine and cargo, and the applicable axle, hitch and towing-vehicle constraints. Obtain the actual loaded weights rather than approving transport from the HL35U model code or its catalog operating weight.
For shipping, request the packing configuration, external dimensions and gross mass. These may differ from a machine prepared for local road transport. The 4,945 mm catalog length and 2,585 mm height do not independently establish a container-loading or trailer-loading plan.
HL35U Compared With HL35
The HL35 remains worth assessing when depth is the main requirement. Its catalog depth is only 13 mm less, while its reference width is 200 mm narrower, length 597 mm shorter and height 426 mm lower. Those differences may matter for access and transport; they do not establish which machine is best without the actual project constraints.
The HL35U offers different reference reach and unloading-height boundaries, as explained above. That is a specific reason to investigate it. The 3.8 t versus 2.5 t comparison does not independently establish superior lifting capacity, stability in a particular position or productivity. Ask for the relevant evidence rather than making those conclusions from operating weight.
Frequently Asked Questions
Is the HL35U a 3.5-tonne excavator?
The supplied catalog lists 3.8 t operating weight. Use the confirmed weight and its definition for the ordered machine, not the digits in the model name.
Does the U mean zero tail swing?
The suffix alone does not prove it. The catalog lists an 858 mm body swing radius, but the actual rear clearance and measurement definition need confirmation. Request the appropriate drawing or measured demonstration if clearance determines the purchase.
Does it dig much deeper than the HL35?
The listed maximum depths are 3,071 mm and 3,058 mm, a difference of 13 mm. The larger reference changes are in digging radius and unloading height. Assess the working position your job requires.
Can it load a truck with sides below 3,382 mm?
Maximum unloading height alone cannot approve that task. Check horizontal reach, bucket path, machine setback, attachment geometry and clearance at the required discharge point.
Are the cab and air conditioning included?
The catalog lists them as options, while the spreadsheet describes a reference package that includes them. Confirm the included equipment, actual dimensions and cooling arrangement in the quotation. The photograph is an example, not the order specification.
Can I use 3,800 kg to choose the trailer?
Not by itself. Verify the actual loaded machine and cargo mass, the weight definition, usable trailer payload and all relevant vehicle, axle and hitch limits. Do not confuse trailer gross rating with capacity available for the excavator.
Request an HL35U Configuration Review
- Destination country and delivery location.
- Material, trench depth, wall profile and available machine position.
- Receiving-vehicle height and required discharge position.
- Access width, overhead clearance and rear-clearance constraints.
- Engine-document requirements, cab, tracks and attachments.
- Transport arrangement, intended use and expected quantity.
Send your HL35U requirements to Hongli. Tai’an Hongli Machinery Equipment Co., Ltd. can review the reference information and identify the evidence needed for the proposed build. If a narrower model already meets the job, that should be considered before accepting the additional mass and space requirements.
